Akytec ITP series digital process indicators are easy to configure and feature a compact and smart design. The T-shaped housing provides both a relatively large screen and a conventional and practical mounting bracket of 22.5mm. The front of all process indicators is rectangular with dimensions 48 x 26 mm and IP65 waterproof standard. The display is large enough to display 14 mm high characters. The 7-segment digits can be displayed with either red or green LEDs (depending on the device variation).

Table of contents




AkYtec's wide range of process indicators

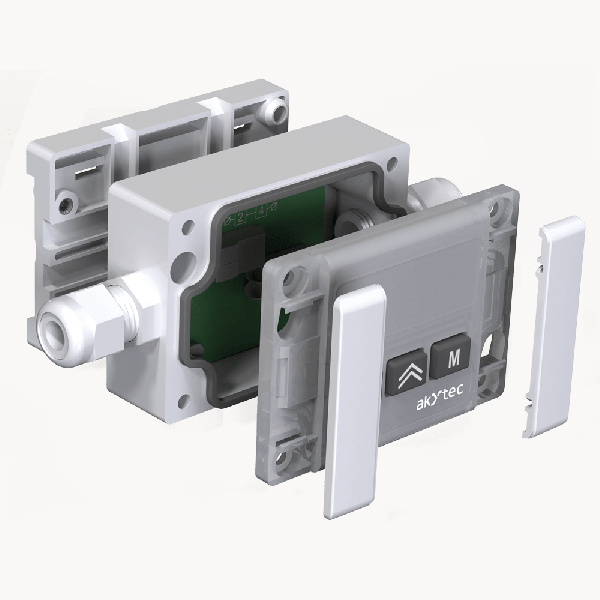

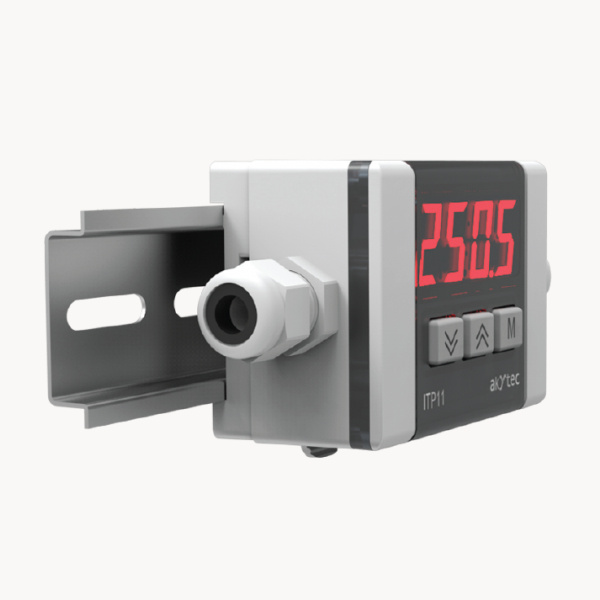

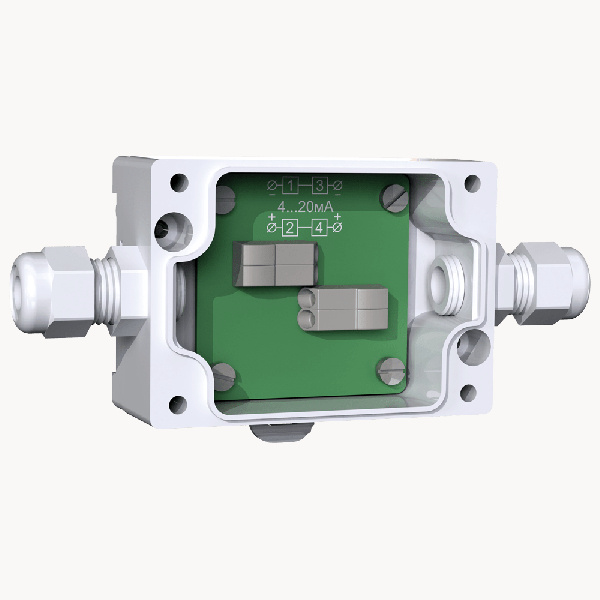

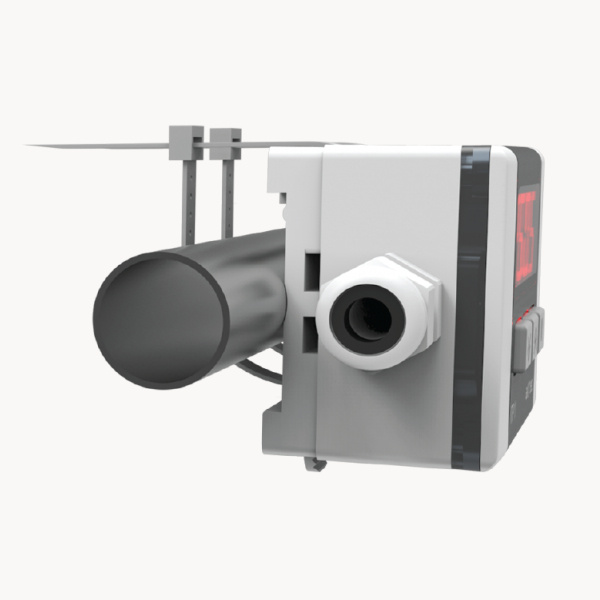

With the exception of the wall-mount version (ITP11-W), all akYtec process indicators are designed to be installed in a 22.5 mm mounting hole, which is standard for LED indicator lights, pushbuttons and rocker switches. These process indicators do not require mounting screws or special rectangular cut-outs, making them quick, easy and very simple to mount in a control panel or on a control cabinet door. The ITP11-W has a universal housing - it can be mounted on a DIN rail or pipe.

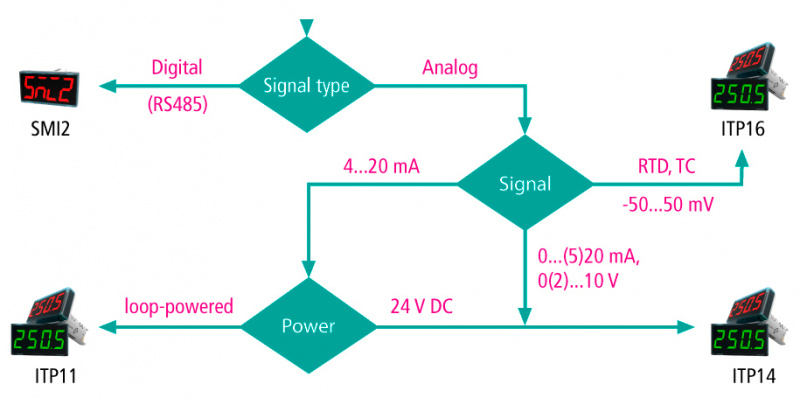

Procesa indikatoru izvēles shēma

akYtec comparison of indicators - displays


ITP11

ITP14

ITP15

ITP16

SMI2
Input signal 4-20 mA
(strāvas cilpa)
4-20 mA,
0-10 V
4-20 mA,
0-10 V
TC, RTD (Pt100, Pt1000 etc.) RS485, Modbus RTU/ASCII
(Master/Slave)
Power supply Voltage drop 4 V 24V DC 24V DC 24V DC 12/24V DC
Output signal - NPN-tranzistors
200 mA,
42V DC
NPN-tranzistors
200 mA,
42V DC
NPN-tranzistors
200 mA,
42V DC
-
Accuracy and
cycle of readings
±(0.2% FS + 1 digit)
1 s
±(0.2% FS + 1 digit)
0.3 s
± 2% FS
0.3 s
± 0.25% FS
2 s
Baud rate 2.4...115.2 kBit/s
Display 7 segment, 4 numbers
LED display,
14 mm character height
7 segment, 4 numbers
LED display,
14 mm character height
LED,
10 segments
7 segment, 4 numbers
LED display,
14 mm character height
7 segment, 4 numbers
LED display,
14 mm character height
LED color

red or green
(depend on a model)
red or green
(depend on a model)
Red or green
(configurable)
red or green
(depend on a model)
red or green
(depend on a model)
Protection Front panel IP65,
Housing IP20
Front panel IP65,
Housing IP20
Front panel IP65,
Housing IP20
Front panel IP65,
Housing IP20
Front panel IP65,
Housing IP20

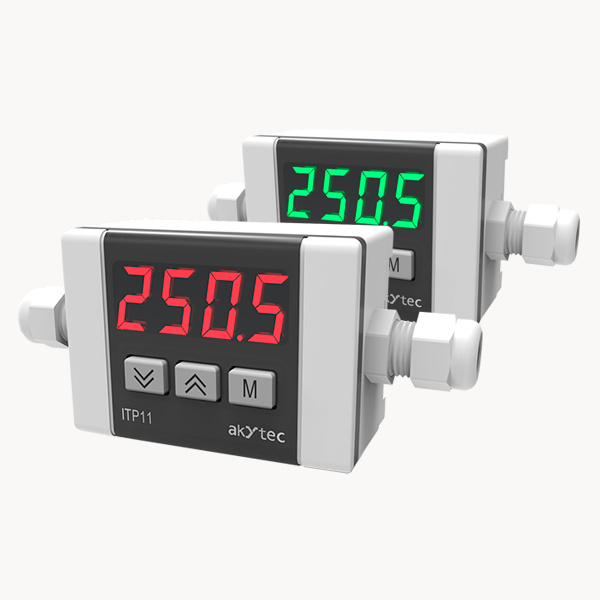

ITP11: Process indicator with 4-20 mA loop supply

LED color 4-20 mA input loop-powered easy mounting quick mounting compact design process display accuracy 0.2% IP65 rated enclosure Character height 14 mm Ambient temperature

ITP11 indekatorsITP11 is a universal industrial process monitoring indicator that can be connected to any sensor or device with an output signal of 4...20mA. The display values can be set according to the required values (e.g. 4mA= 0 /20mA= 100 or 4mA= -100 and 20mA= +100) the display value is linearly calculated for the set values.

No additional power supply is required as the display is powered from a 4..20mA loop.

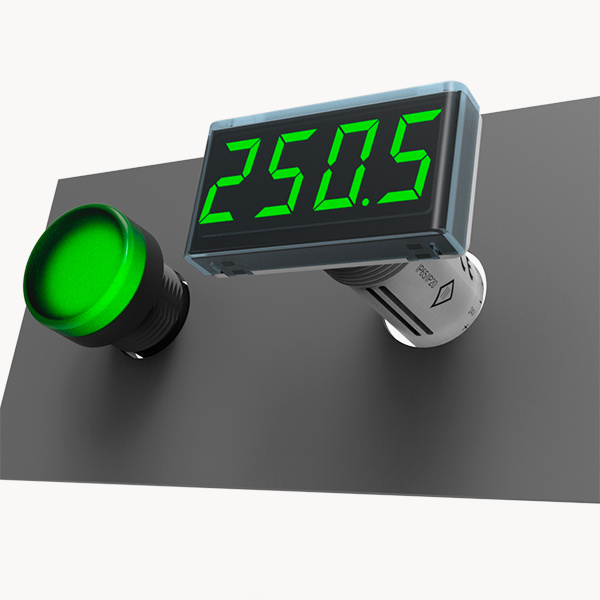

Mounting is in a standard 22.5mm hole in the distributor door, which is normally used for signal lights, pushbuttons and switches. This ensures easy and convenient mounting of the device in the panel and, thanks to its compact size, it is possible to place several displays of this type next to each other.

ITP11 indicator functions

  • The indication of the process values is according to the 4-20 mA signal from the measuring devices;
  • Signal scaling;
  • Settable decimal position;
  • Display values of -999...+9999;
  • Square root function (for special sensors);
  • Digital filter;
  • Alarm function (display flashes when set value is reached);
  • Error indicator when exceeding set limit values;
  • Access protection.

Usage of the ITP11 indicator

The ITP11 process indicator is particularly suited to quickly and easily set up a local, visual indication of process values. It can be used to display various process values such as pressure, humidity, temperature, displacement, etc.

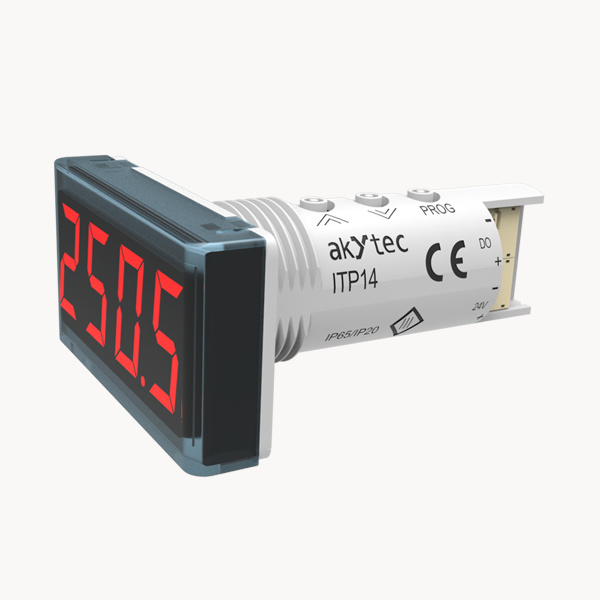

ITP14: Process indicator with 0-10V/4-20mA input and NPN output

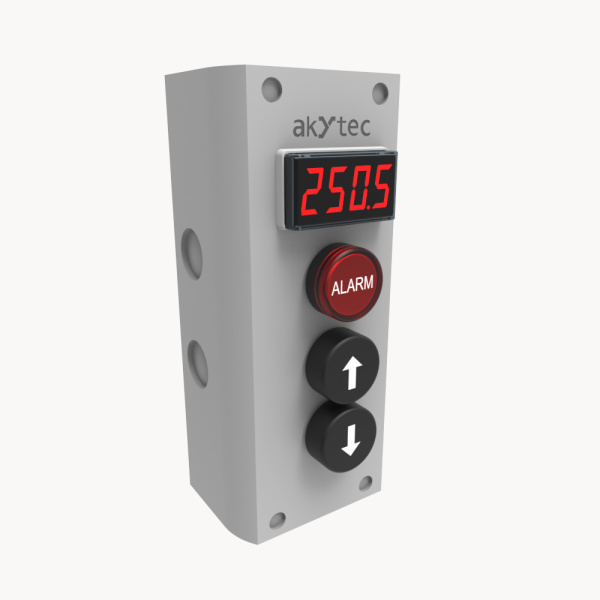

LED color0-10 V input4-20 mA inputNPN-transistor output (400 mA, 42 V DC)ON/OFF controlpower supply 24 V DCGalvanic isolationeasy mounting in a Ø22.5 mm holequick mountingcompact designthe process display can be installed into a push-button boxaccuracy 0.2%IP65 rated enclosureCharacter height 14 mmAmbient temperature

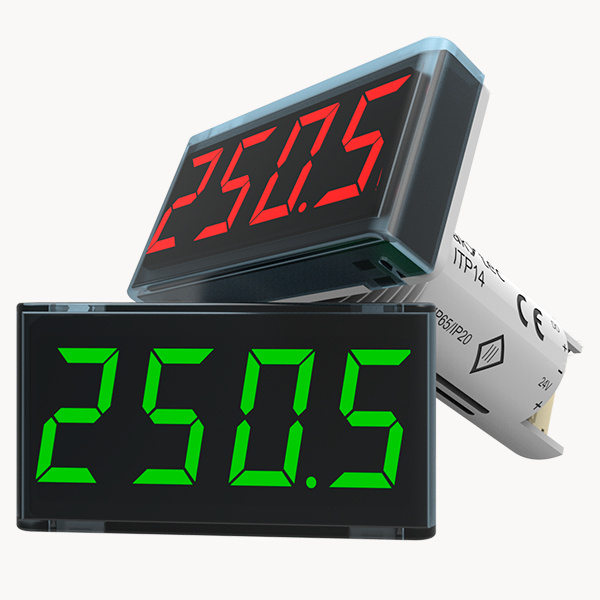

ITP14 indikatorsITP14 is a universal process indicator for monitoring and controlling industrial processes. Equipped with digital output and configurable analogue input. The NPN transistor output can control loads up to 42V DC / 200mA, allowing on/off control switching. The input can be configured from voltage signals (0-10V, etc.) and also from current signals (4-20mA, etc.).

The compact design allows mounting in a 22.5 mm hole, which is commonly used for push-button signal lamps and switches. This ensures quick and easy installation and allows several of these displays to be placed side by side in a control cabinet door or panel.

The process indicator ITP14 also supports an alarm function. When this function is activated, if the process exceeds the set values, the display starts flashing.

The device requires a 24V DC power supply. The indicator has an IP65 rated front panel and an operating temperature range of -40°C to +60°C.

ITP14 indicator functions

  • Analog input 0-10V, 4-20mA and others;
  • Process value measurement and display;
  • Signal scaling;
  • Settable decimal position;
  • Display range -999 ... +9999;
  • ON/OFF control with NPN output;
  • Square root function (for special sensors);
  • Digital filter;
  • Alarm function (display flashes when set value is reached);
  • Error indicator when exceeding set limit values;
  • Error indicator in case of overload or short circuit.

ITP14 indicatur usage

The ITP14 universal display is particularly suitable for quick and easy installation of visual display systems for various processes such as water supply, heat treatment and many others.

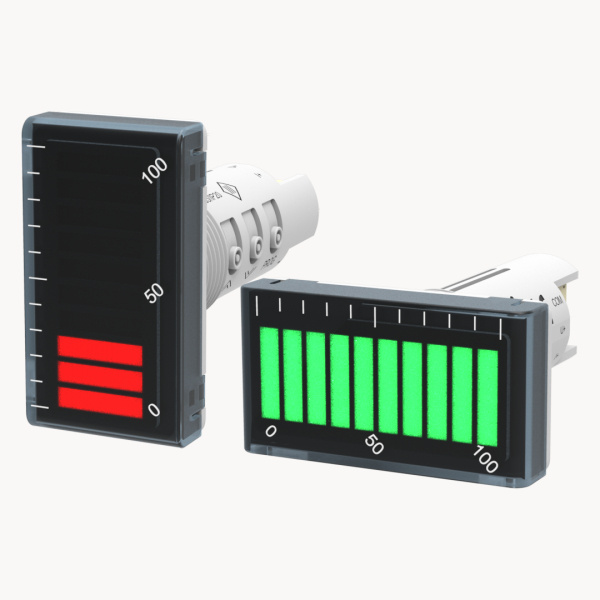

ITP15: Compact LED bar graphic process indicator

LED color4-20 mA inputloop-poweredeasy mounting in a Ø22.5 mm holequick mountingcompact designthe process display can be installed into a push-button boxaccuracy 0.2%IP65 rated enclosureCharacter height 14 mmAmbient temperature

ITP15 indikatorsThe ITP15 is a compact panel process indicator with a bar graph designed to visualise analogue input signals in the range 0 to 100% with 10 indication fields of 10% each. The input signal can be a linear voltage signal 0(2)-10V or a current signal 0(4)-20mA.

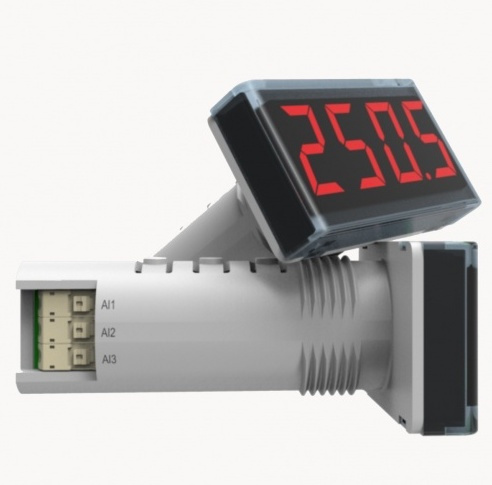

Thanks to the cylindrical shape of the housing mounting part, the ITP15 bar graph panel meter can be positioned vertically or horizontally without changing the mounting cut-out. The indicator fits perfectly into a standard cut-out of 22,5mm diameter, commonly used to mount standard signal lamps or pushbuttons in control cabinets or panels.

In addition, the ITP15 is equipped with an NPN transistor output that can be used for simple on-off functionality. The output signal can control loads up to 200mA, 42V DC.

ITP15 indicator functions

  • Bar graph indication according to the input signal;
  • Display range 0...100%;
  • 10-segment two-colour display (green/red) - 10% each;
  • Configurable input signal (0-5mA, 0(4)-20mA, 0(2)-10V);
  • ON/OFF control with NPN-transistor output;
  • 2 flashing modes (fast/slow);
  • Alarm configuration.

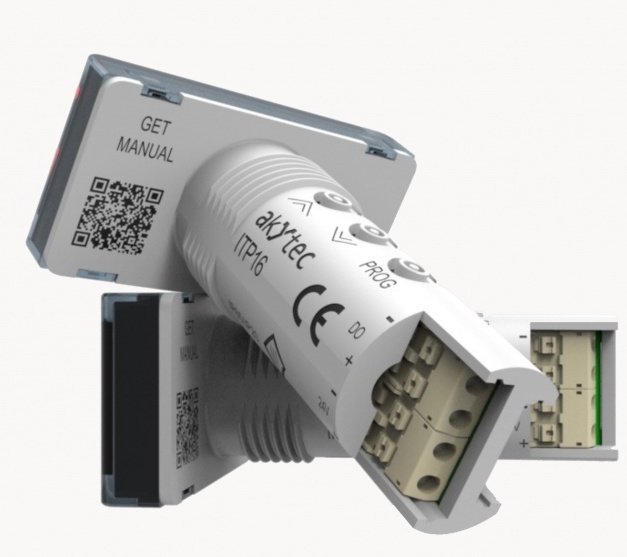

ITP16: Temperature indicator for process monitoring and control

LED colorRTD input (PT100, PT1000, and others)TC input (K, J, and others)NPN-transistor output (400 mA, 42 V DC)ON/OFF controlpower supply 24 V DCGalvanic isolationeasy mounting in a Ø22.5 mm holequick mountingcompact designthe process display can be installed into a push-button boxaccuracy 0.2%IP65 rated enclosureCharacter height 14 mmAmbient temperature

ITP16 indikatorsThe ITP16 is an industrial process temperature indicator and controller. Equipped with digital output and configurable analogue input. The ITP16 input can be used with 0-1V, RTDs (Pt100, Pt1000, etc.) or thermocouples (K, J, etc.). See below for a complete list of sensors used. The output of the NPN transistor can be used for the control function. Shutter load up to 200 mA / 42 V DC, which can be used for ON/OFF control or as alarm output.

Compact, standardised design allows mounting in a 22.5 mm bore, which is commonly used for signal lamps, switches, etc. This ensures quick and easy installation and provides the possibility of placing many displays in the control cabinet door or panel.

The process indicator ITP16 supports the alarm function. When this function is activated, the display flashes at a frequency of approximately 1 Hz when the process value exceeds the set points.

The device requires a 24 V DC power supply. The device provides IP65 on the front and can be operated in a temperature range of -40 to +60°C.

ITP16 indicator functions

  • Temperature measurement and indication using RTD and thermocouple sensors (see table);
  • Measuring and displaying the process value;
  • Signal scaling;
  • Adjustable decimal point position;
  • Display range -999 ... + 9999;
  • ON/OFF control with NPN output;
  • Square root function (for special transmitters);
  • Digital filter;
  • Alarm function (flashes when set points are exceeded);
  • Error indication when exceeding measurement limits;
  • Error indication when interrupted or short-circuited.

ITP16 indicator usage

The ITP16 universal display is particularly suitable for quick and easy installation of visual display systems for various processes such as water supply, heat treatment and many others. The compact size of the ITP16 ensures that it can be used on site as an additional display for measured values or as part of a complete visual display system.




SMI2: Process indicator with RS-485 interface

LED colorModbus protocolRS485 interfacethe process display can be used as a Modbus Master or Slavepower supply 24 V DCeasy mounting in a Ø22.5 mm holequick mountingcompact designthe process display can be installed into a push-button boxIP65 rated enclosureCharacter height 14 mmAmbient temperature

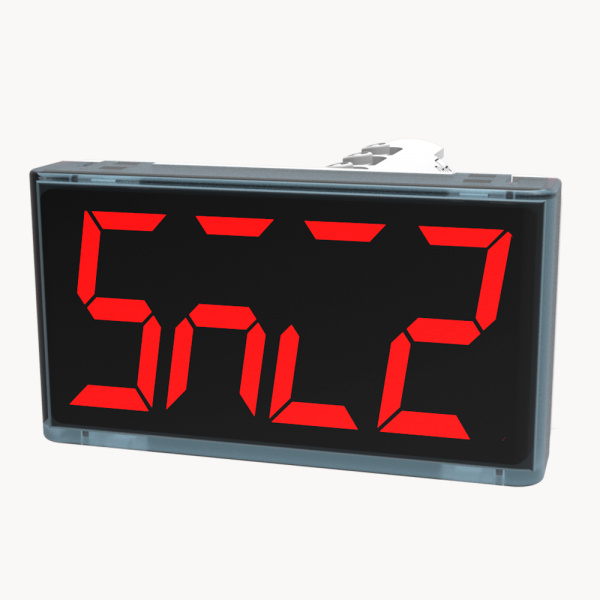

SMI2 indikatorsSMI2 is a universal display/indicator with RS485 interface. Measured values can be displayed in up to four numeric positions.

The SMI2 features a compact, standardised design and fits into a standard 22.5mm aperture for signal lamps. This ensures quick and easy installation, and several of these displays can be placed side by side in a control cabinet door or on a panel.



SMI2 indicator functions

  • Can be used as Modbus Master or Slave;
  • Displays values on RS485 network;
  • Supports several variable types: int, word, float, string;
  • Displays an alarm if values are outside the specified range;
  • Modbus RTU / ASCII protocols supported.

SMI2 indicator usage

The RS485 display of the SMI2 can be used for many categories of tasks. For example, it can be used for simple control systems that do not themselves contain a display, so that important data from PLCs or I/O modules can be displayed in a space-saving way. The SMI2 can also be installed in a remote control panel to display the required control values close to the operator. The displays can be easily and quickly integrated into an existing network using the included configuration software.



Akytec process indicators offer an effective solution for industrial applications, providing easy configuration and installation for the user. Their compact and robust design and wide range of functions make these indicators suitable for monitoring and controlling a wide variety of processes. These indicators are suitable for a wide range of tasks, from temperature control to process monitoring. With the Akytec ITP series, you get a reliable instrument that meets modern industrial requirements. If you require further advice on process indicators, please contact our engineers.
