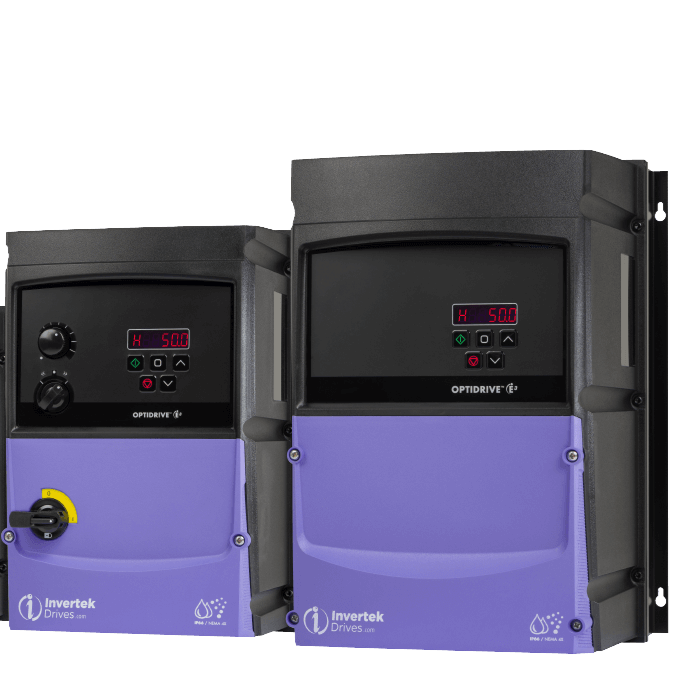

Variable frequency drives

Variable frequency drives (VFDs) are essential devices used to control the speed of electric motors by adjusting the frequency and voltage of their power supply. These drives help improve energy efficiency, optimize processes, and extend equipment life. VFDs are widely used across various industries including HVAC, water treatment, and manufacturing.

What are variable frequency drives?

Variable frequency drives are electronic controllers that convert fixed-frequency electrical input into variable-frequency output. This allows electric motors to operate at different speeds and torques based on application needs. VFDs are also referred to as inverters or frequency converters.

Most common uses of variable frequency drives

Pumps and compressors for water and wastewater systems
Fans and blowers in HVAC systems
Conveyor belts and material handling systems
Mixers, mills, and crushers in industrial processing
Energy-saving automation in building services

Frequently asked question (FAQ)

How does a variable frequency drive work?
- A VFD converts AC power to DC using a rectifier, then back to variable-frequency AC using an inverter. This allows it to control motor speed and torque precisely by adjusting the frequency and voltage supplied to the motor.
What is the working principle of VFD filter?
- VFD filters reduce electrical noise and harmonics caused by high-speed switching in the inverter. Line filters protect the power supply, while output filters protect motor insulation and reduce voltage spikes, especially over long cable runs.
How does a VFD control speed?
- A VFD adjusts the frequency of the power supplied to a motor, which directly affects its speed. By also regulating voltage, the drive ensures efficient torque production at varying speeds.
What variable frequency drive fit to water pump?
- For water pumps, choose a VFD with PID control, pump-specific software, and suitable voltage and current ratings. Ensure compatibility with the motor and system requirements, and consider energy-saving features for variable load applications.
