Did you know that the efficiency of industrial equipment can be significantly improved with the right soft starter? Schneider Electric's new Altivar Soft Starter ATS130 is an innovative solution that offers both power and functionality. In this article, you will learn how the ATS130 can improve the performance of your equipment, reduce maintenance costs (up to 30%) and simplify installation.
Table of contents

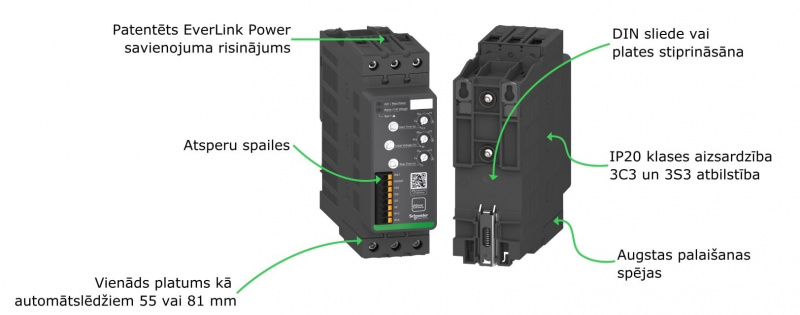

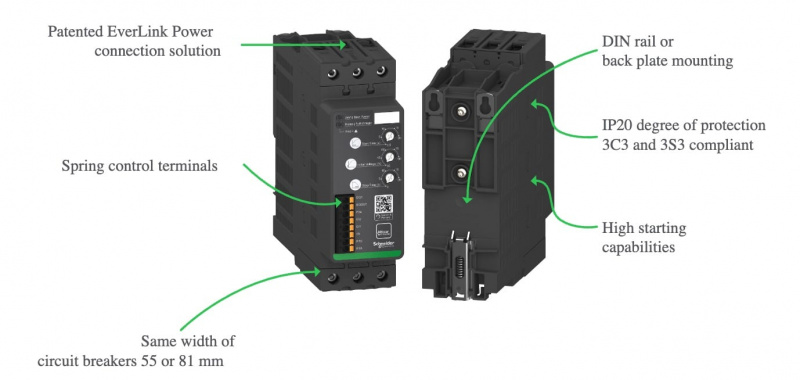

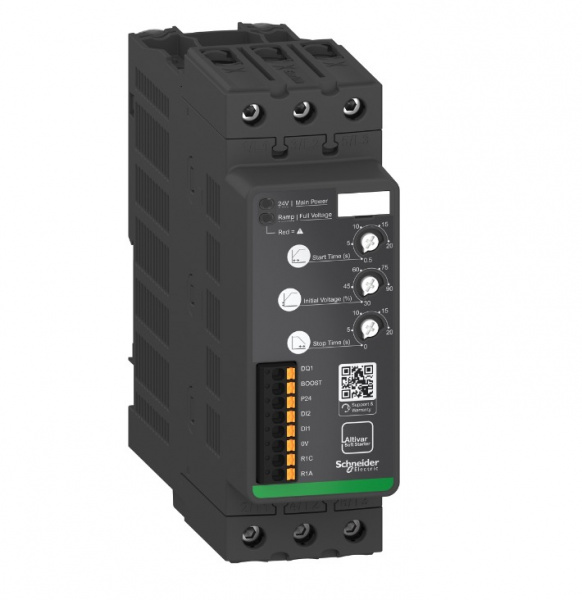

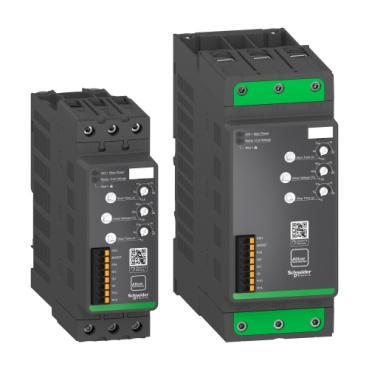

The ATS130 is an optimized but powerful soft starter that extends the power range of the ATS01 to 55 kW (105 A). It offers many new features while maintaining its small size and ensuring efficiency in a wide range of operating conditions.
| ATS130N2D38LT | ATS130N2D45LT | ATS130N2D65LT | ATS130N2D73LT | ATS130N2D80LT | ATS130N2C11LT | |
|---|---|---|---|---|---|---|
| Operating current | 38A | 45A | 65A | 73A | 80A | 105A |
| Motor power (kW) |
11kW at 230V 18.5kW at 400V 22kW at 440V |
11kW at 230V 22kW at 400V 22kW at 440V |
18.5kW at 400V 30kW at 400V 37kW at 400V |
22kW at 440V 37kW at 400V 45kW at 440V |
22kW at 440V 45kW at 440V 55kW at 440V |
30kW at 230V 55kW at 400V 55kW at 440V |
| Motor power (hp) |
10hp at 200V 10hp at 208V 10hp at 230V 25hp at 460V |
10hp at 200V 10hp at 208V 15hp at 230V 30hp at 460V |
20hp at 200V 20hp at 208V 25hp at 230V 50hp at 460V |
20hp at 200V 20hp at 208V 30hp at 230V 50hp at 460V |
25hp at 200V 25hp at 208V 40hp at 230V 60hp at 460V 75hp at 480V |
30hp at 200V 40hp at 230V 75hp at 460V 75hp at 480V |
| Operating cycles/hour | 50 cycles/h | 35 cycles/h | 13 cycles/h | 10 cycles/h | 25 cycles/h | 10 cycles/h |
| Power loss per device current dependent | 7W | 9W | 16W | 20W | 16W | 27W |
| Power loss during starting | 220W at 300% | 300W at 300% | 400W at 300% | 500W at 300% | 600W at 300% | 703W at 300% |
| Height | 166mm | 166mm | 166mm | 166mm | 197mm | 197mm |
| Width | 55mm | 55mm | 55mm | 55mm | 81mm | 81mm |
| Depth | 165mm | 165mm | 165mm | 165mm | 180mm | 180mm |
| Net weight | 1.3 kg | 1.3 kg | 1.3 kg | 1.3 kg | 2.3 kg | 2.3 kg |
The ATS130 is designed to make the most of the electric motors, ensuring optimum starting and stable operation in harsh conditions. Thanks to its simple installation and low maintenance requirements, the ATS130 will help you to reduce overall operating costs and improve production efficiency.
Invest in advanced technology for reliable operation and a sustainable future. The Altivar Soft Starter ATS130 is the ideal solution to improve the performance of industrial equipment and reduce operating costs. Contact our engineers for more information and to start realising the potential of your equipment.
