Introduction Did you know that choosing the right power supply can significantly impact your industrial system's performance and efficiency? The new PASF-60.24 power supply unit from akYtec is designed to meet all your industrial requirements. In this article, you will learn about the key features and benefits of the PASF-60.24 and how it can help enhance your system's safety and efficiency.
Table of Contents

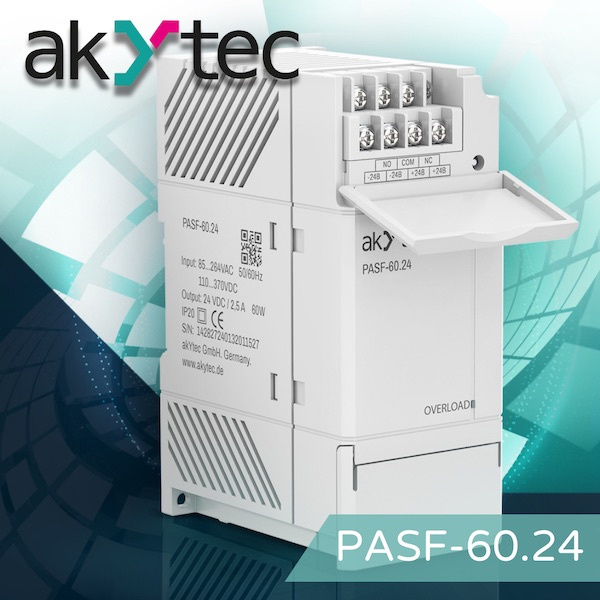

The PASF-60.24 is a two-phase power supply unit with an integrated output relay, suitable for demanding solutions. It offers maximum functionality and can be easily adapted to complex systems and machines. The power supply steps down the voltage from 230V AC to 24V DC, and the output voltage can be adjusted with a trimmer (+-8%). Thanks to its extremely space-saving narrow design, it is particularly suitable for industrial applications in switch boxes or small control cabinets.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Specification | Value |
|---|---|
| Operating Voltage: | 85-264 VAC / 110-370 VDC |
| Output Voltage: | 24V DC (adjustable with trimmer +-8%) |
| Operating Temperature: | -40°C to +70°C |
| Protection Class: | IP20 |
| Mounting: | Wall mount, DIN rail |
| Protection Features: | Short circuit, overcurrent, overvoltage, overtemperature |
| Output Current Limiting: | Yes |
| Galvanic Isolation: | Yes |
| Parallel Operation Capability: | Yes |
Using the PASF-60.24 power supply unit can significantly enhance the safety and efficiency of your industrial systems. With versatile mounting options and a wide temperature range, it is suitable for various environments and applications. Additionally, with the ability to adjust the output voltage and use parallel operation, you can easily customize your system to meet specific requirements.
The PASF-60.24 is the perfect choice to ensure the stable and reliable operation of your industrial systems. Don't miss the opportunity to upgrade your power infrastructure with this high-quality power supply unit. Contact our engineers for more information or to place an order.
Invest in your business and ensure the highest level of safety and efficiency today!
