Did you know that in the 20th century, heat-resistant alloy Nichrome wire completely changed the way that heating applications were used? This article covers the many applications of Nichrome wire, contrasts it with alternatives such as Kanthal wire, and gives a brief background of its history. You'll see why Nichrome wire is essential for both do-it-yourself applications and industrial automation by the end.
Table of Contents:

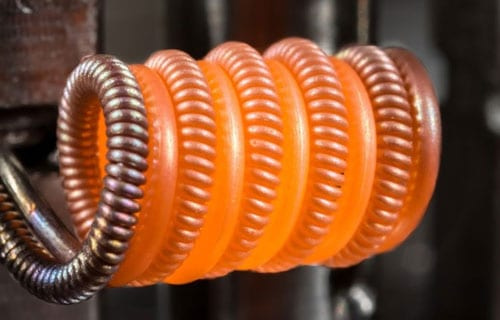

Nichrome wire is an alloy made up mainly of nickel (80%) and chromium (20%). A popular choice for many industrial and electrical applications, nichrome wire is well-known for its remarkable resistance to oxidation and high temperatures. It is perfect for extended heating and cooling cycles without losing any of its qualities because of its stability and longevity.
Nichrome wire is an alloy made up mainly of nickel (80%) and chromium (20%)
Nichrome wire is widely utilized across different industries due to its unique properties:

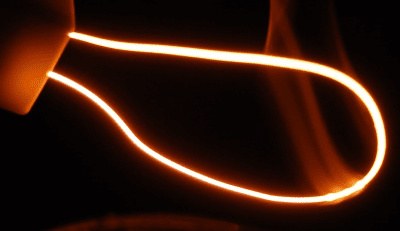

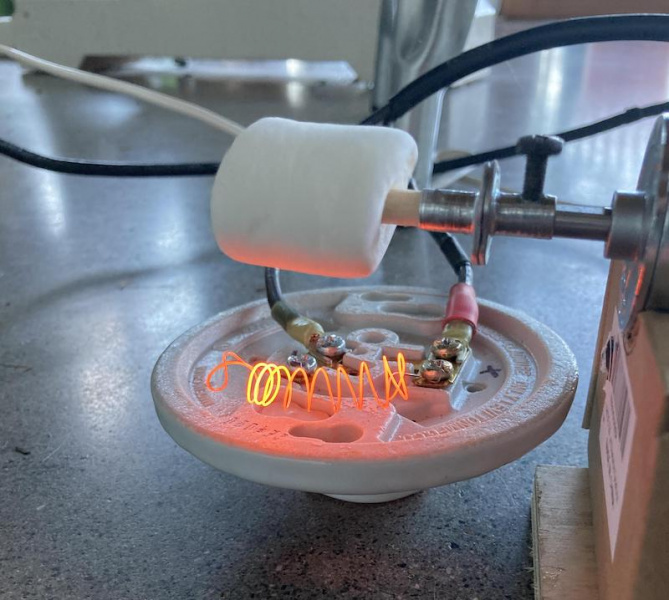

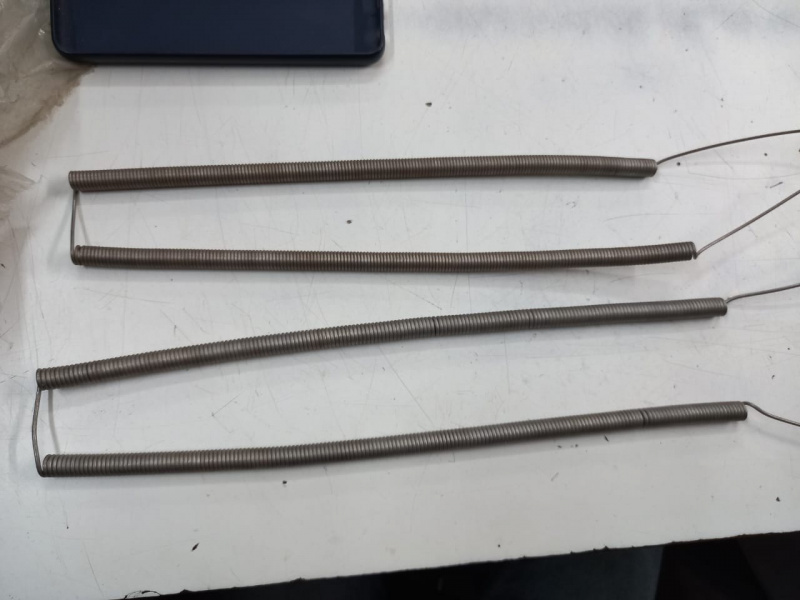

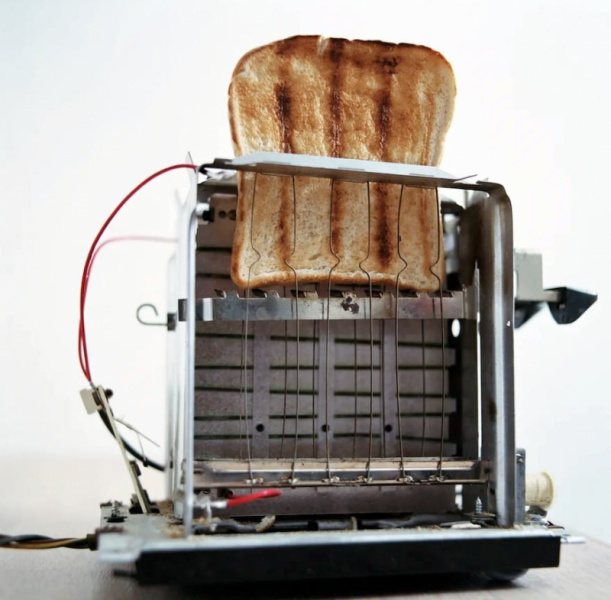

Nichrome wire is extensively used in both industrial and household heating elements. In industrial settings, it maintains high, steady temperatures in furnaces necessary for processes like metal melting. In household appliances, such as toasters and hair dryers, Nichrome wire ensures quick and even heating, contributing to efficient and reliable performance. Its durability also makes it suitable for electric space heaters, providing long-lasting and safe heating solutions.

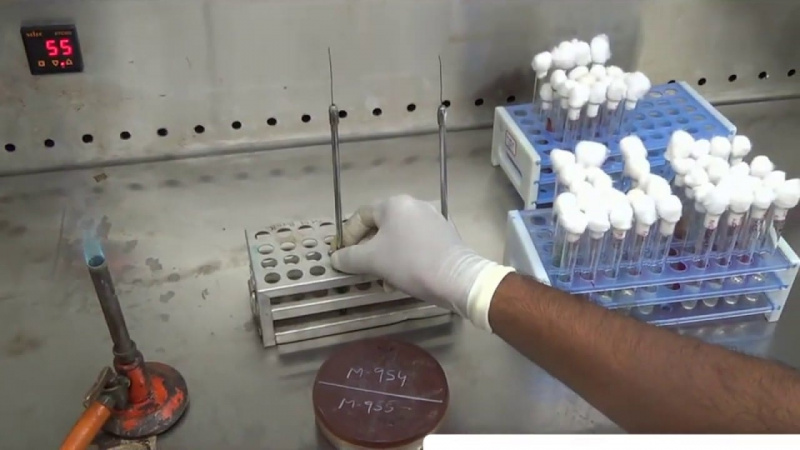

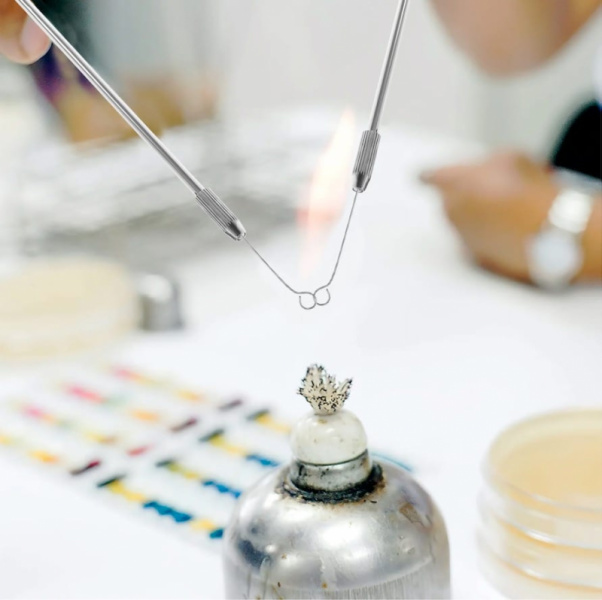

In laboratory environments, Nichrome wire is essential for experiments that require precise and stable temperature control. It is commonly used in flame tests to detect trace metals and in creating precise heating elements for various experimental procedures. Its high mechanical strength and creep resistance ensure it performs reliably under continuous high-temperature conditions.
 |
 |
Nichrome wire's high resistance and stability make it valuable in electronic components like thermostats and temperature sensors. These applications require materials that can maintain consistent performance over a wide temperature range, ensuring the reliability and accuracy of the devices.

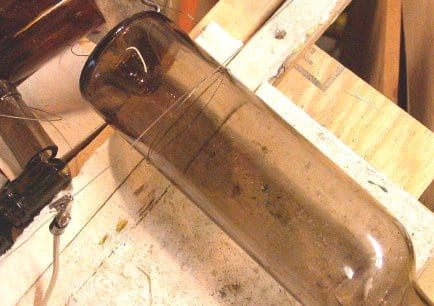

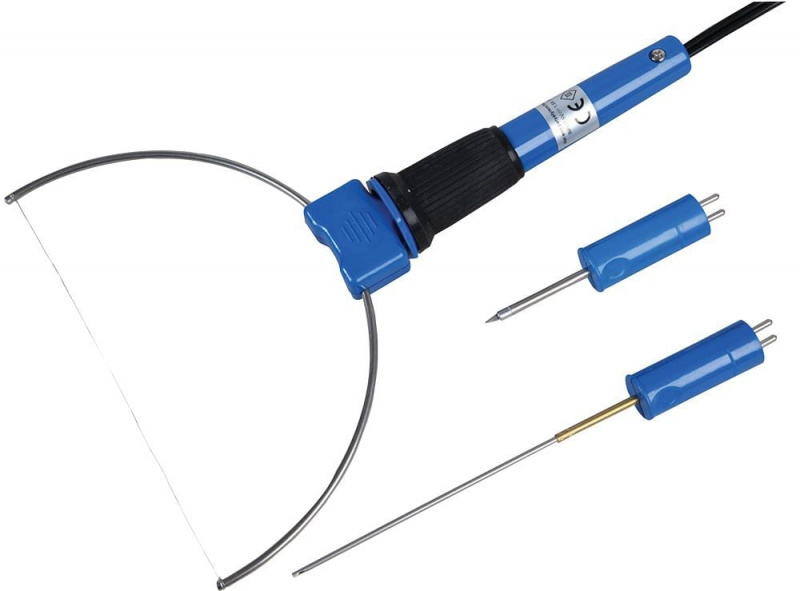

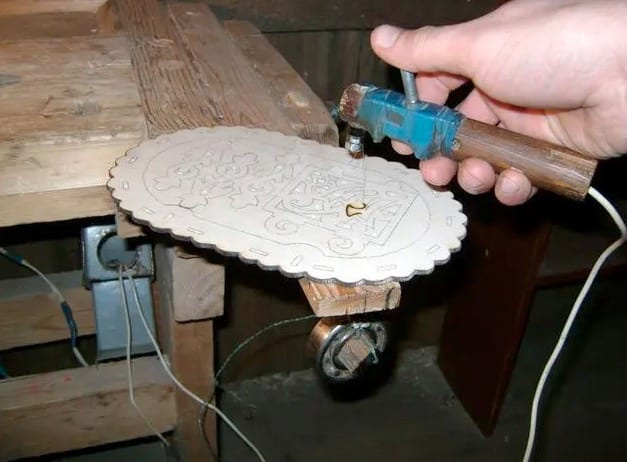

Nichrome wire is a preferred material for cutting foam and glass due to its heating properties. In foam cutting, it allows for precise shaping and slicing, which is essential for both amateur and professional model makers. In glass cutting, the high-temperature heat generated by Nichrome wire enables clean and accurate cuts, making it ideal for intricate designs and industrial manufacturing processes.
 |
 |

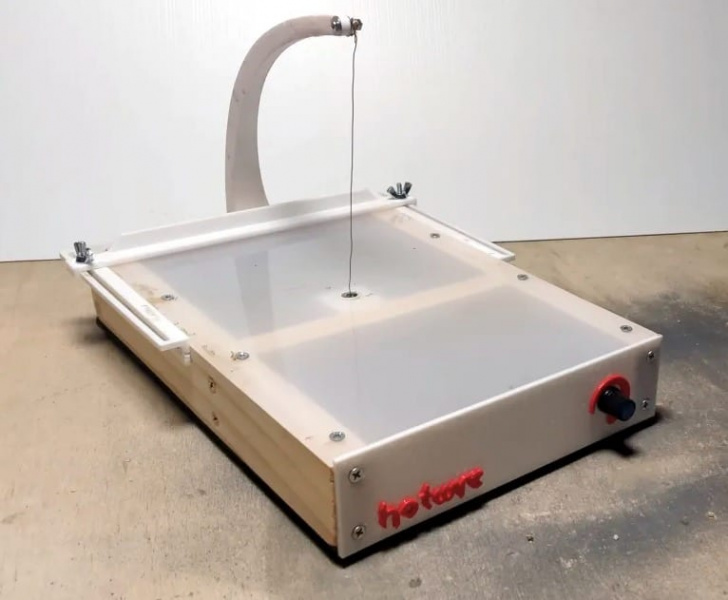

Nichrome wire is popular in do-it-yourself projects that require dependable heating or cutting. Hobbyists use it to create custom foam-cutting tools, heating devices, and various craft projects. Its versatility and reliability make it a go-to material for precise and efficient DIY applications.
 |
 |
| Property | Description |
|---|---|
| Composition: | Nickel (80%), Chromium (20%) |
| Melting Point: | Approximately 1400°C |
| Maximum Operating Temperature: | Up to 1200°C |
| Electrical Resistivity: | 1.10 x 10^-6 ohm·m at 20°C |
| Density: | 8.4 g/cm³ |
| Thermal Conductivity: | 11.3 W/m·K |
| Coefficient of Thermal Expansion: | 14 x 10^-6 /°C |
| Oxidation Resistance: | Excellent, maintains integrity at high temperatures |
| Corrosion Resistance: | High resistance to oxidation and chemical corrosion |
| Mechanical Strength: | High tensile strength and durability under thermal cycling |
| Magnetic Properties: | Non-magnetic |
| Workability: | Can be easily formed and shaped, high machinability |
| Stability: | Stable electrical properties over a wide range of temperatures |
| Type | Composition | Max Operating Temperature | Characteristics |
|---|---|---|---|
| Nichrome 80/20 | 80% Nickel, 20% Chromium |
1200°C | High resistivity, used in control resistors and heaters |
| Nichrome 60/16 | 60% Nickel, 16% Chromium, balance Iron |
1100°C | Good oxidation resistance, used in medium temp applications |
| Nichrome 37/18 | 37% Nickel, 18% Chromium, balance Iron |
1050°C | Resistant to sulphur attack, suitable for harsh environments |
| Property | Nichrome Wire | Kanthal Wire | Cupronickel Wire | Constantan Wire |
|---|---|---|---|---|
| Composition | Nickel (80%), Chromium (20%) |
Iron (73-77%), Chromium (20-23%), Aluminum (5-7%) |
Copper (75%), Nickel (25%) |
Copper (60%), Nickel (40%) |
| Max temperature | 1200°C | 1400°C | 400°C | 500°C |
| Oxidation Resistance | Excellent | Excellent | Good | Good |
| Resistance | High | Medium | Low | Medium |
| Usage | Electric heaters, resistance wires |
High-temperature furnaces, industrial heaters |
Low-temperature heating elements, marine applications |
Precision resistors, thermocouples |
Stainless steel wire can be used as a hot cutting wire, but it is not the ideal choice. Because of its high melting point, stainless steel is difficult to heat to the necessary temperature. Additionally, cutting with stainless steel wire produces a lot of sparks, which can be problematic.
A material that is easier to heat up and has a lower melting point, such as tungsten, is a better choice. In addition to producing fewer sparks than stainless steel, tungsten is considered to be safer.
Therefore, instead of utilizing stainless steel wire for hot cutting, it is advised to use a speciality wire or material that has been tested and designed for this particular application.

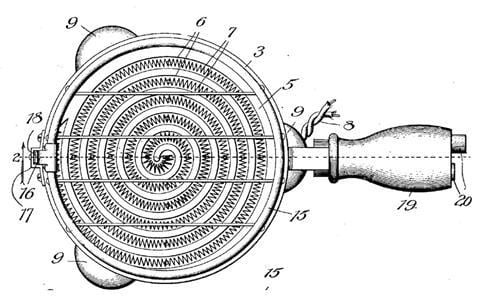

American inventor Albert Marsh created nichrome wire in 1905 after learning that an alloy of chromium and nickel could tolerate extremely high temperatures and was resistant to oxidation. Nichrome wire was first utilized in toasters and hair dryers, among other early electric heating appliances. Because of its endurance and versatility, its application has extended throughout time to encompass laboratory equipment, industrial furnaces, and many other industrial uses. Nichrome wire, which provides dependable and effective solutions for heat and electrical resistance needs, is now an essential component of many different sectors.
Because of its superior physical characteristics and tolerance to high temperatures, nichrome wire is an exceptional material for use in industrial applications. Even though it might cost more than certain alternatives, important industrial operations depend on its stability and safety.
