https://lasma.eu/en/search/products

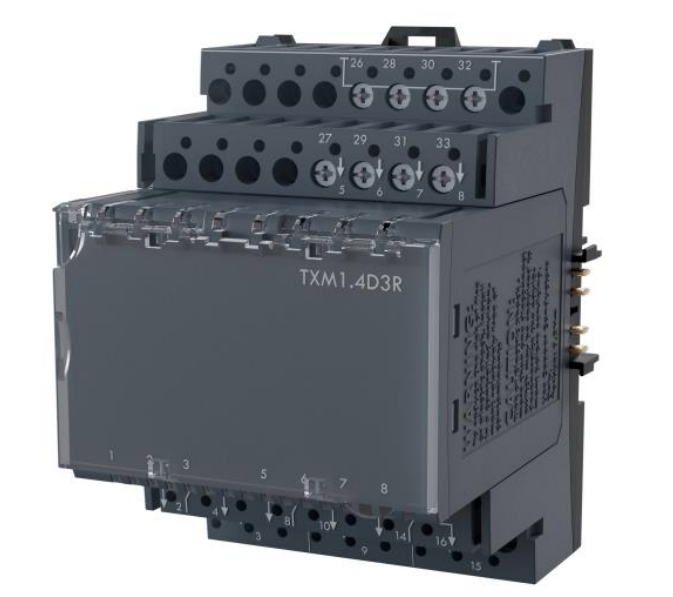

4 digital input, signaling per input with three-colored LED (green, yellow, red), without local operation. 4 DI, individually configurable as: • Message signal • Message impulse with storage functions • Counter impulse for up to a maximum of 10 Hertz 3 outputs signaled with green LED, without local operation. 3 DO (relay switch), individually configurable as: • Continuous or impulse contact • Single-stage (Note: no multi-stage steps / pulse as supported by TXM1.6R) • Three-point positioning output with internal stroke model • Switching voltage AC 12...250 V / DC 12…30 V • Switching current max. 4 A Hardware bolting is by means of external wiring the two-way contacts. For use with the PXC4, PXC5.E24, PXC7.E400 automation stations Additional info - Colored LEDs
|
Without VAT
With VAT
|
Buying |
|---|---|
| 249.90 EUR | 1 |
Need quote?
| Available | Location | Get |
|---|---|---|
|
0 pcs |
ZTF Lāsma Office | |
|
Ask about availability
|
Supplier's warehouse | Need to clarify |
|
Pick up in the office
The time will be specified after order confirmation.
|
|
|
Delivery to address
The time will be specified after order confirmation.
|
|
|
Omniva
Need to clarify
|
| Code: | S55661-J124 |
|---|
Supplier:
4 digital input, signaling per input with three-colored LED (green, yellow, red), without local operation. 4 DI, individually configurable as: • Message signal • Message impulse with storage functions • Counter impulse for up to a maximum of 10 Hertz 3 outputs signaled with green LED, without local operation. 3 DO (relay switch), individually configurable as: • Continuous or impulse contact • Single-stage (Note: no multi-stage steps / pulse as supported by TXM1.6R) • Three-point positioning output with internal stroke model • Switching voltage AC 12...250 V / DC 12…30 V • Switching current max. 4 A Hardware bolting is by means of external wiring the two-way contacts. For use with the PXC4, PXC5.E24, PXC7.E400 automation stations Additional info - Colored LEDs
