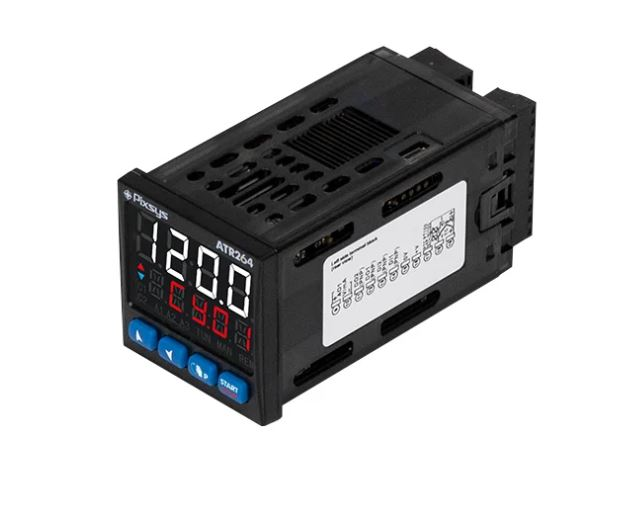

| Code: | ATR26413ABC |
|---|---|
| Air humidity: | 35..95 |
| Communication interface: | NFC for configuration, USB for configuration |
| Input: | 50 mA Current transformer, PT100 , PT500 , PT1000 , PTC1K , Ni100 , NTC10K , Thermocouple (K, S, J, T, N, R, B, E), 4…20 mA (Ri≤5ohm) AI1, 0…1 / 5 / 10 V (Ri≥110Kohm) AI1, PNP DI1, PNP DI2, 0…60 mV , 1…150 Kohm |
| Manufacturer: | Pixsys |
| Operating temperature: | 0..45°C |
| Output: | 0…10 V , 4…20 mA , Q2 (2A resistive load 230VAC), Q1 (2A resistive load 230VAC), PNP DO1, PNP DO2, SSR (12/24V, 25mA output for command or alarm) |
| Power supply: | 24..230V AC/DC |
| Programming mode: | NFC |
