- 2 switching outputs for control of electro-thermal drives for heating radiator and cooling ceiling valves - Per output up to 4 connected electro-thermal drives with in total up to 1.5 A in the on-state and up to 58 W power consumption when switched on - One relay contact per output as switching element - Rated contact operating voltage AC 24...230 V or DC 24 V - Rated contact frequency: 50/60 Hz - Contact rated current according to DIN EN 60669-1: 1.5 A (resistive load) - Screw-less terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5...2.5 mm2 - With bus connection module - Bus-powered electronics - Integrated bus coupling unit, bus connection via bus terminal - Modular installation device for mounting in AP 118 automation module box or AP 641 room control box
|
Without VAT
With VAT
|
Buying |
|---|---|
| 151.00 EUR | 1 |
Need quote?
| Available | Location | Get |
|---|---|---|
|
0 pcs |
ZTF Lāsma Office | |
|
Ask about availability
|
Supplier's warehouse | Need to clarify |
|
Pick up in the office
The time will be specified after order confirmation.
|
|
|
Delivery to address
The time will be specified after order confirmation.
|
|
|
Omniva
Need to clarify
|

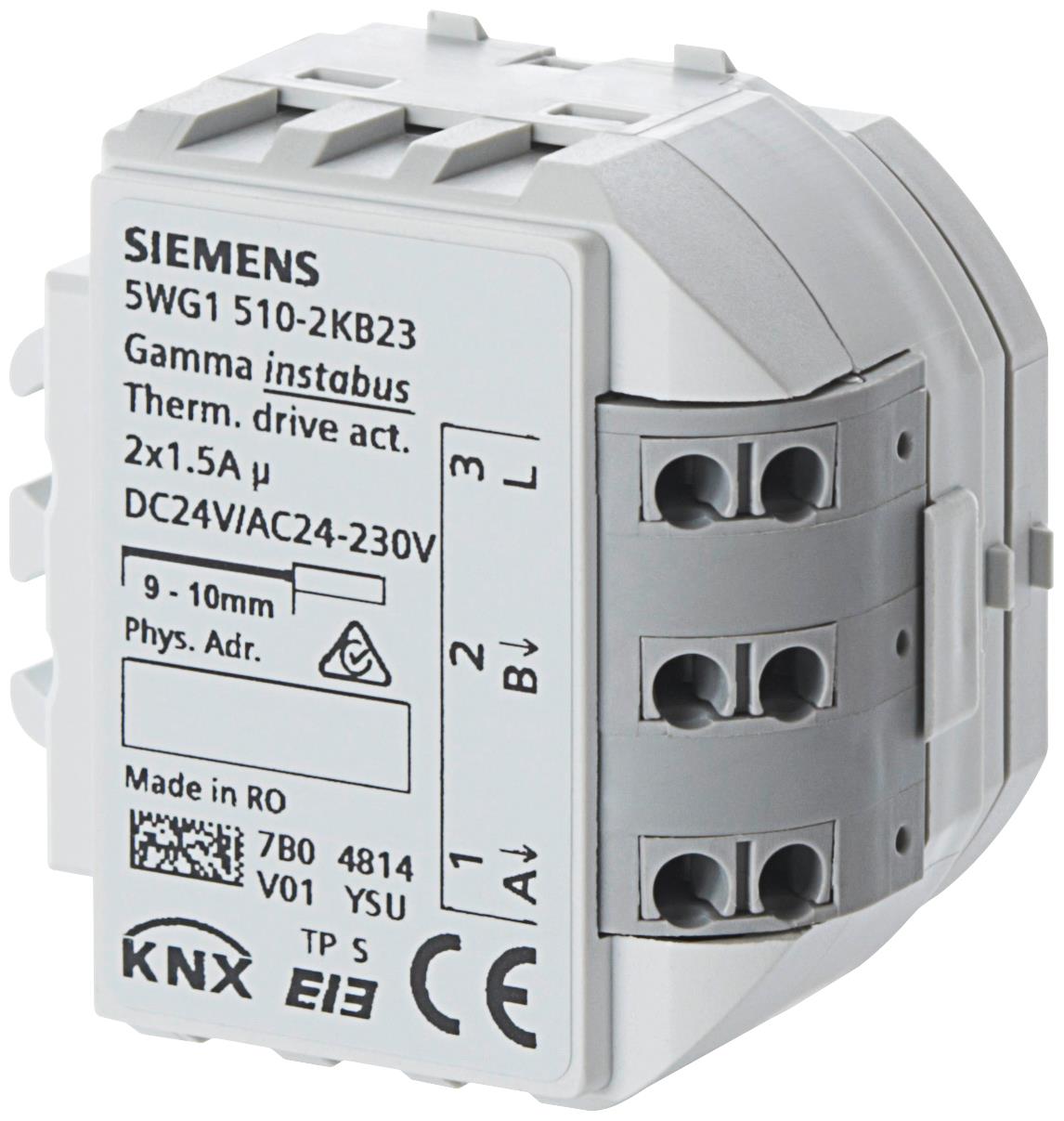

| Code: | 5WG1510-2KB23 |
|---|
- 2 switching outputs for control of electro-thermal drives for heating radiator and cooling ceiling valves - Per output up to 4 connected electro-thermal drives with in total up to 1.5 A in the on-state and up to 58 W power consumption when switched on - One relay contact per output as switching element - Rated contact operating voltage AC 24...230 V or DC 24 V - Rated contact frequency: 50/60 Hz - Contact rated current according to DIN EN 60669-1: 1.5 A (resistive load) - Screw-less terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5...2.5 mm2 - With bus connection module - Bus-powered electronics - Integrated bus coupling unit, bus connection via bus terminal - Modular installation device for mounting in AP 118 automation module box or AP 641 room control box
