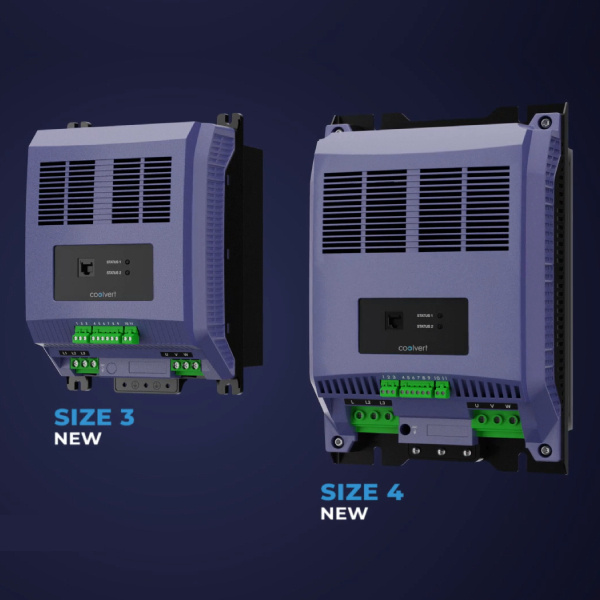

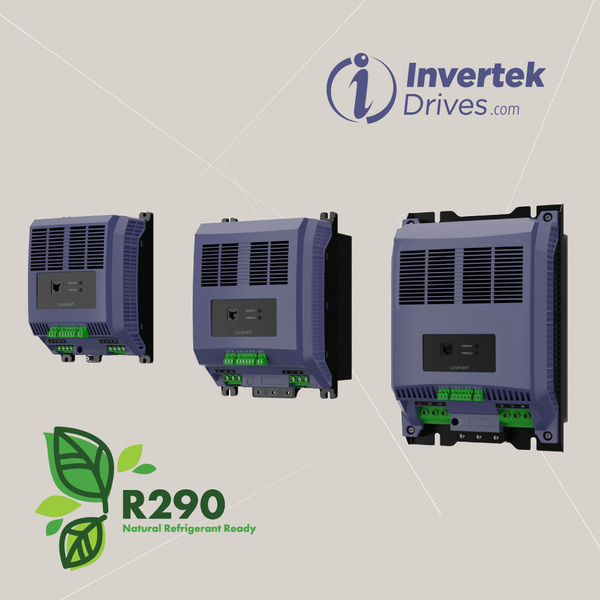

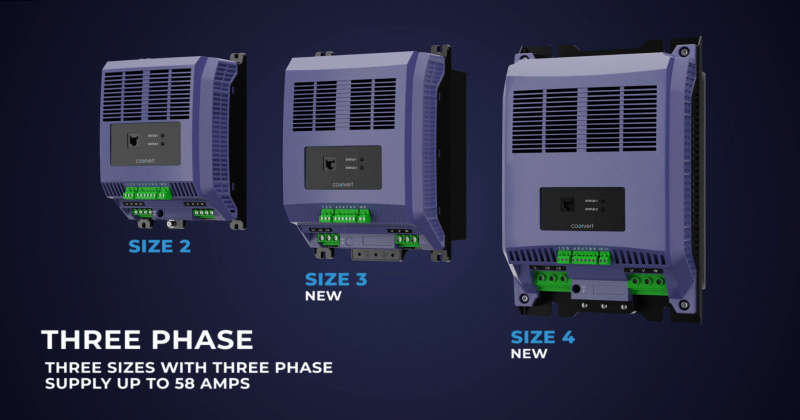

In 2024, Invertek Drives took part in the Milan Motor Show from 12 to 15 March and presented new products - more powerful frequency converters. The upgraded models of the Optidrive Coolvert series were presented at Mostra Convegno Expocomfort 2024. The new expanded Optidrive Coolvert series from Invertek Drives has an even greater power range, available in three compact frame sizes up to 58 A.
Table of contents
Invertek's Optidrive Coolvert series of frequency converters is specifically designed for BLDC compressors, heat pumps and condensing units (CDUs). They enable manufacturers of heating, ventilation, air conditioning and refrigeration or HVAC-R equipment to achieve optimum system performance in a compact environment. It is important to mention that the new frequency converters are compatible with A2L, A3 chillers and CO2, including R290 and R744 natural refrigerants that support F-Gas regulations.
The new Coolvert models have a significantly increased power range. In line with Scroll compressor manufacturers' demands for higher power output with 400 V, 3-phase output power that reaches:

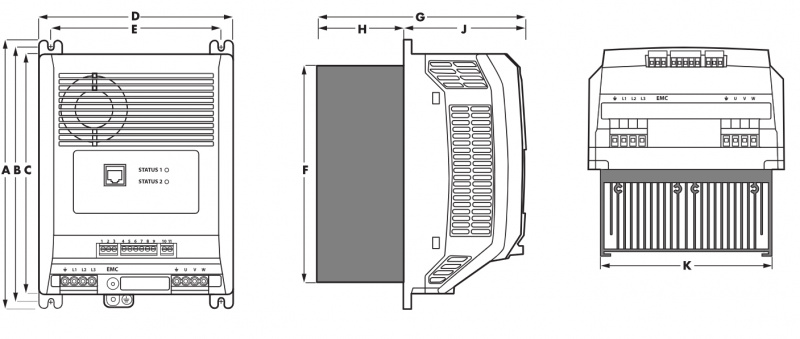

The new models of these frequency converters are designed with enclosures that significantly reduce installation space. The compact dimensions of the enclosure are very useful for manufacturers of refrigeration and heat pump equipment. Below you can see the dimensions of the Invertek Drives Coolert.
| Sizes (mm) | A | B | C | D | E | F | G | H | J | K |
| Frame 2 | 226,3 | 215,2 | 201,4 | 165,3 | 114,8 | 182 | 177 | 71,7 | 104,4 | 104,4 |
| Frame 3 | 277,5 | 262,6 | 247,2 | 193,6 | 169,9 | 224 | 200,3 | 84,3 | 116 | 116 |
| Frame 4 | 310 | 336 | 364 | 239,5 | 150 | 291,5 | 230,6 | 98 | 133 | 133 |

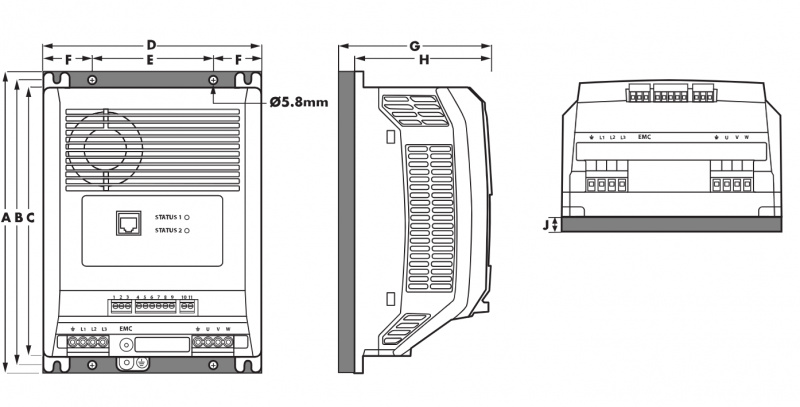

| Sizes (mm) | A | B | C | D | E | F | G | H | J |
| Frame 2 | 226,3 | 215,2 | 201,4 | 165,3 | 90 | 37,7 | 113,9 | 104,4 | 9,5 |
These innovations are an excellent combination with the existing Coolvert product range. We would like to remind you once again of the existing advantages of the Coolvert series, which are also present in the new models:
Mike Carman, business development manager for HVAC-R at Invertek Drives, says Coolvert is an ideal choice for equipment manufacturers looking for high-performance and compact installation solutions for natural-cooling BLDC compressors.
He also highlights that the new Coolvert dimensions allow for optimised system design and efficiency, while meeting changing global environmental and emissions regulations, such as the latest F-Gas requirements in the European Union. The smaller size of the frequency converters is particularly valuable in locations where space is limited, and the extended power range opens the door to new possibilities.
In addition to the OEM benefits, Coolvert frequency converters are ideally suited for a wide range of industries where energy efficient and environmentally friendly HVAC-R technologies are increasingly in demand. This includes cooling and air conditioning systems for data centres, supermarkets, buildings and industrial processes.
