Relays are crucial components in any automation and power management system, such as in automation switchgear for production lines. They offer reliable and efficient control of load and control signals, which can significantly reduce power consumption and operational costs. By utilizing DELCON relays, which are equipped with innovative pulse transformer technology, companies can greatly enhance the reliability and durability of their equipment. This also reduces maintenance needs and, over the long term, the costs associated with downtime and repairs. The absence of mechanical elements in these relays substantially extends their lifetime.
Table of contents:
Don't spend on second best - use DELCON relays
DELCON relays are designed using pulse transmission technology for outstanding performance and reliability. This technology is fundamentally different from traditional optocoupler relays and offers a number of decisive advantages.

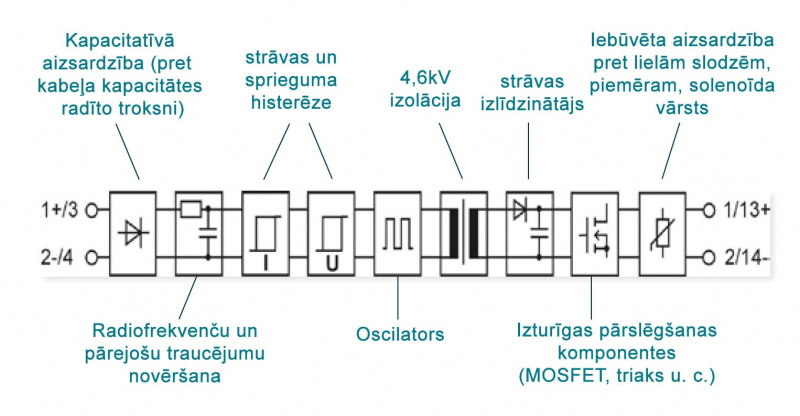

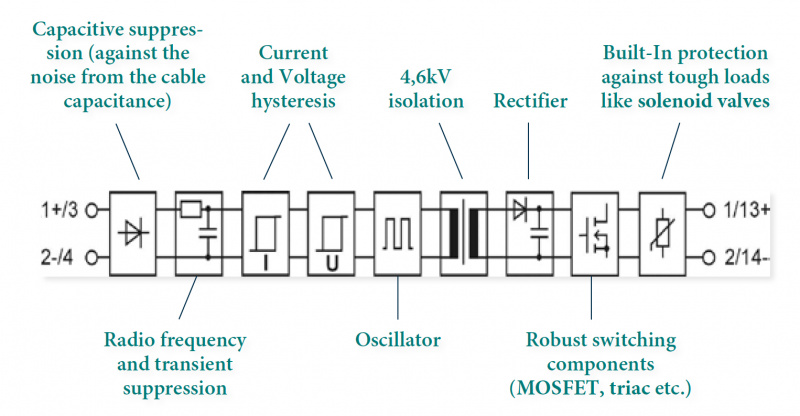

Pulse transmission DELCON uses pulse transformers to transmit the signal from the primary side to the secondary side, providing up to 4600 VAC galvanic isolation between the control and field sides. This type of isolation is important to prevent any possible electromagnetic interference or overvoltage effects that can occur in large industrial sectors.
High energy transfer efficiency: unlike optocoupler relays, where energy is drawn from the load circuit, DELCON relays' pulse transformer technology allows the use of high-quality output components that do not require additional amplification.
Low current leakage and no minimum load requirement: DELCON relays are able to operate without minimum load, which is essential in many applications where traditional relays would not work effectively. This is particularly important in situations where loads can be variable or uncertain.
High electrical robustness and reliability: these relays are designed to have very high electrical and mechanical viability, even under severe operating conditions, thanks to built-in protection circuits such as varistors and diodes.
DELCON relays are designed to operate under very demanding conditions, offering high fault and temperature tolerance. Their high isolation capacity and ability to protect against electromagnetic interference mean that they are particularly suitable for use in switchboards and automation cabinets, as well as in industries such as energy, transportation, and manufacturing.
These technical features make DELCON relays superior to other relays on the market - they are highly reliable and reduce operating costs in the long term, which is vital for any company looking for efficiency and continuity in their automation and power management processes.
10 YEARS WARRANTY

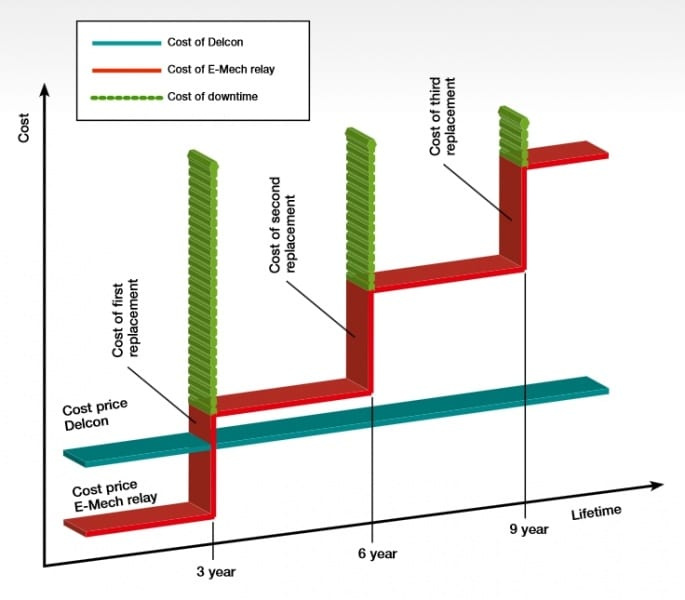

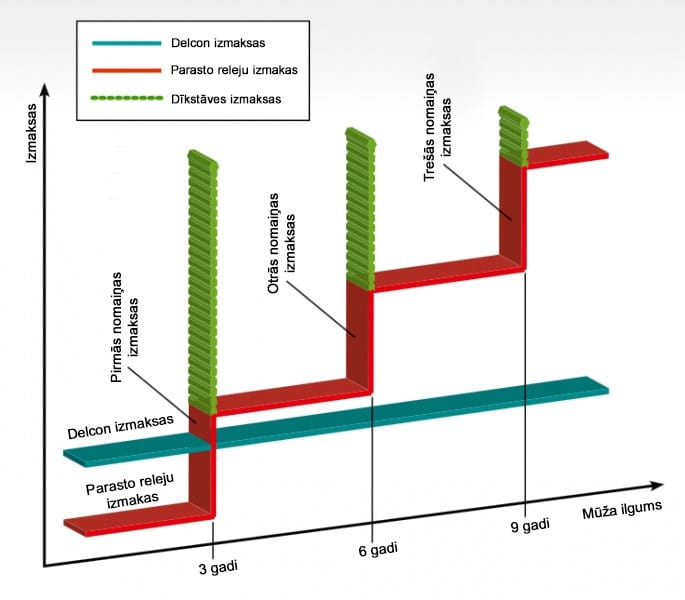

Durability and reliability: DELCON relays are designed to withstand the high loads and electromagnetic disturbances that are common in production lines and automation cabinets. They provide longer lifetimes without the need for frequent component replacement, which affects downtime and maintenance costs.Delcon relays cost less and work for years
| Load is 3A/240VAC/cosφ 0.4 Application is running 600 cycles/hour, 8h every weekday and it is budgeted to run at least 10 years |
||
| Electro-mechanical relay | ||
|
|
|
|
|
Mechanical life 3 x 107 |
With resistive load (0,72kVA) |
With inductive load cosφ 0.4 |
260 days x 8 hours x 600 cycles
|
Relays needed: 40 |
|
| Delcon relay | ||
 |
 |
 |
| Mechanical life unlimited MTTF (MIL-HDBK-217F) 3 700 000 hours = 422 years |
Electrical life is not depended on number of cycles |
Inductive loads don't shorten life time of triac outputs |
Electrical life does not depend on the number of cycles. The MTTF value indicates the calculated lifetime based on the components in the relay. Delcon provides a 10-year warranty for this relay, guaranteeing a minimum lifetime of 10 years. Therefore, to prevent production stoppages, the relay should be replaced every 10 years. |
Relays needed: 1 |
|
DELCON relays can be found in any industry, but as mentioned above they are ideal for use in automation cabinets for production lines and other industries where very high reliability is required. These relays are designed to cope with high levels of electromagnetic interference as well as very high loads such as solenoid valves and other mechanical components.
They are widely used:
With DELCON relays, your company can significantly reduce costs and increase production efficiency. These relays reduce the need for frequent maintenance, improve system reliability, and ensure longer operating cycles without interruptions.
Contact us for a personalized consultation on using DELCON relays in your project!
