Video: How to read Tekon PLUS series WiFi transmitters in Modbus RTU network?
May 19, 2022
Obtaining data from sensors without providing complicated wired communication is nothing impossible nowdays. Wireless transmitters are ideal if the readed sensors far apart from eatch other and if providing wired communication are too expensive and too time consuming, or if it is simply not possible to place physical wires .

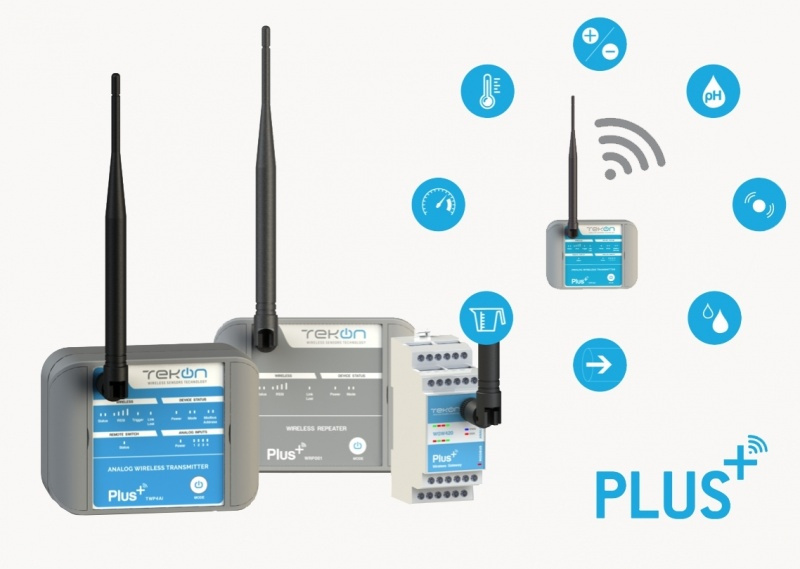

With the Tekon Plus series wireless system, it's easy to do. Tekon plus allows you to place sensors up to 4 km from the base station (Gateway module). The gateway module supports up to 55 transmitters what allows you to build up a vast wireless network.
Tekon Plus series transmitters can collect and transmit signals such as:
- Analog 0-10V or 4-20 mA, inputs configurable
- Temperatures - PT100, thermocouples J, K, N, R, S and T inputs configurable
- Digital inputs (0-24VDC)
- Digital output NPN
To build the most optimized system possible, Tekon offers eight transmitter models, each supporting a different type and number of inputs/outputs.
In this video you will see:
- Tekon Plus gateway (base station) configuration
- Tekon Plus transmitter configuration
- Communication check between transmitters and base station

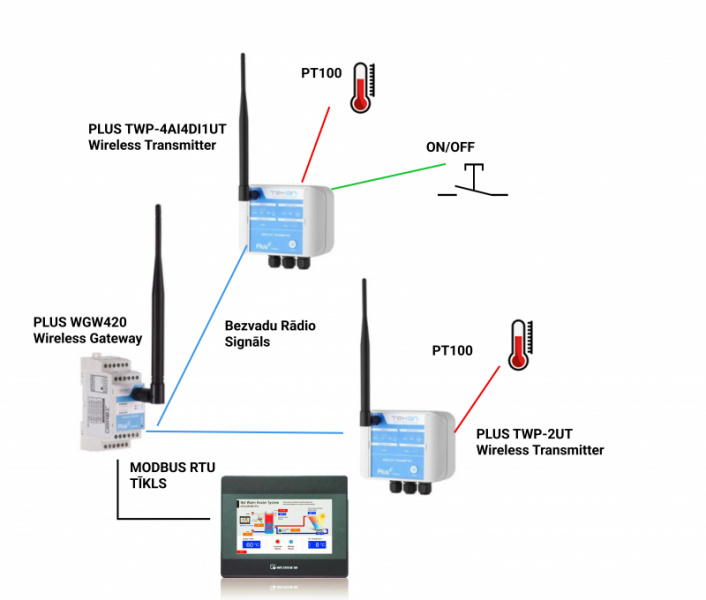

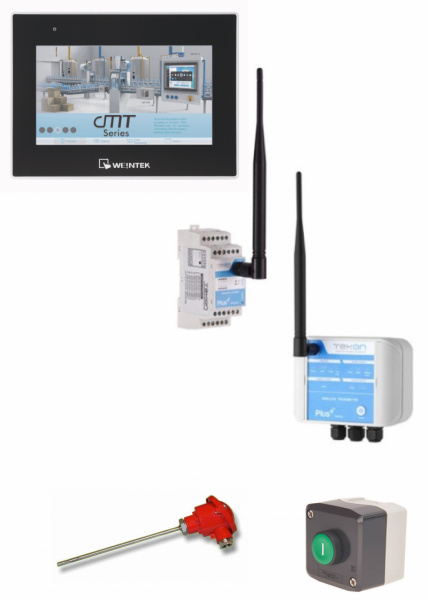

- Tekon Gateway connection to Weintek HMI via Modbus RTU network
- Finding and reading transmitter registers with the Weintek HMI
If you need a wireless transmitters, contact ZTF Lāsma specialists who will help you find the most suitable and cost-effective solution. We are here to support!
