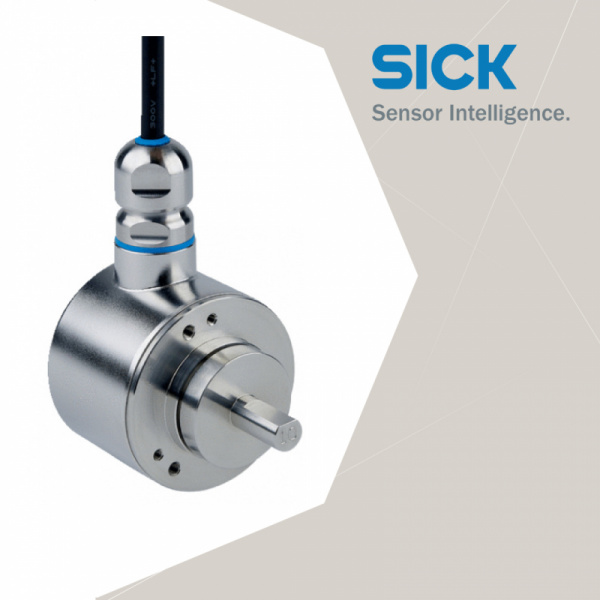

SICK DBS60 Inox incremental encoder - for the harshest working conditions

February 21, 2022

The combination of a complete stainless steel design and a rugged shaft seal make the DBS60 Inox incremental encoder resistant to harsh environmental conditions.

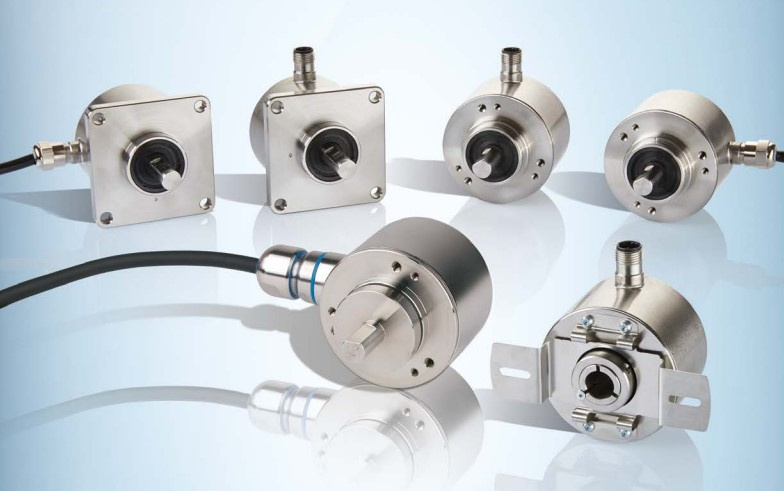

The SICK DBS60 Inox range includes encoders with two types of stainless steel housings:

303/304 (V2A) with standard IP67 housing protection;
316L (V4A) with IP69K housing protection.

SICK DBS60 Inox series encoders: IP67 and IP69K (DBS60I-W*) will be ideally suited for applications requiring high protection against aggressive media and cleaning agents.

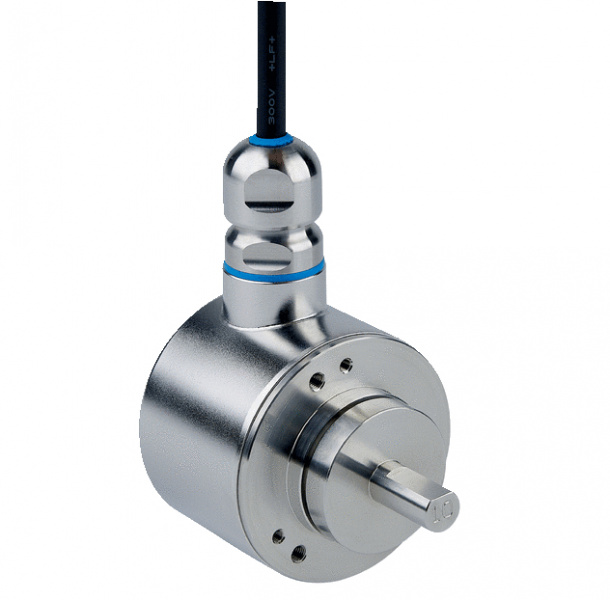

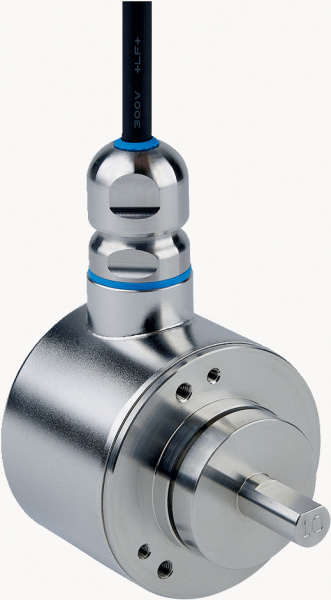

The IP69K DBS60I-W* variant with its patented deflector shield, which protects the shaft seal, is an ideal product for high-pressure, warm-water washdown typical for environments in the food and beverage industry. In addition, the IP69K (DBS60I-W*) encoder version, thanks to its design, prevents the formation of bacteria on the housing, and the 316L (V4A) stainless steel encoder housing is corrosion-resistant.

Below is a video demonstrating the benefits of the IP69K (DBS60I-W *) encoder.

Encoder technical specification:

Standardized number of pulses per turn: 512,1000,1024, 2000, 2048, 2500, 5000;
Electrical interface: TTL / RS-422; HTL / push pull; combined (according to voltage)
Mechanical connection and shaft variations:

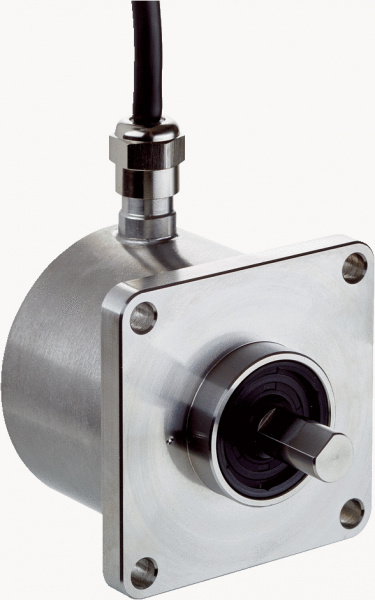

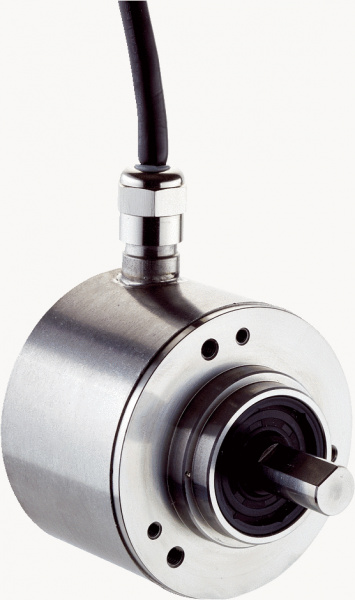

- Square flange or face mount flange;
- Shaft diameter 3/8; 10 mm;

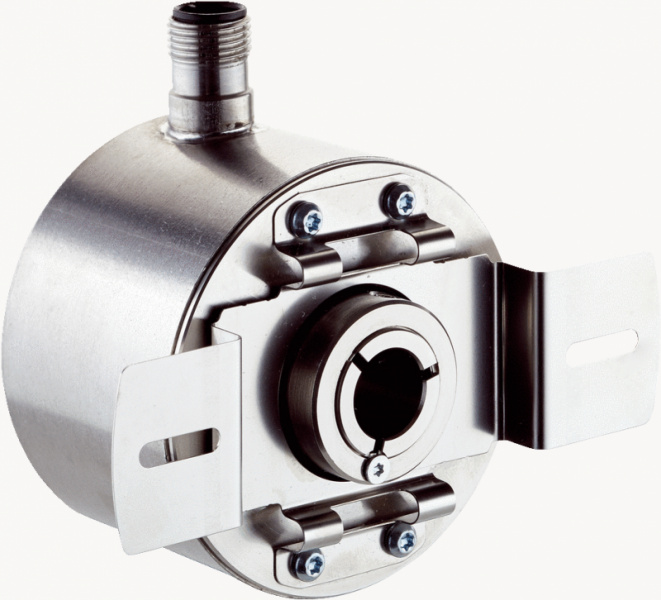

- Hollow shaft diameter 6; 8; 10; 12; 14; 15 mm.
Cable length and connector variations:
- Radial M12 connector;
- 8-pin shielded cable 1.5; 5; 10 m.
Stainless steel housing diameter 58 mm:
- 303/304 (V2A) IP67;
- 316L (V4A) IP69K.

If you need a SICK DBS60 Inox Series Encoder, contact ZTF Lāsma specialists who will help you find the most suitable and cost-effective solution. We are here to support you!
