Pixsys Guard and CNV580 IIot- plug & play

August 18, 2021
Products Images Contacts
Pixsys Guard and CNV580 IIot- plug & play-0

For remote process control!

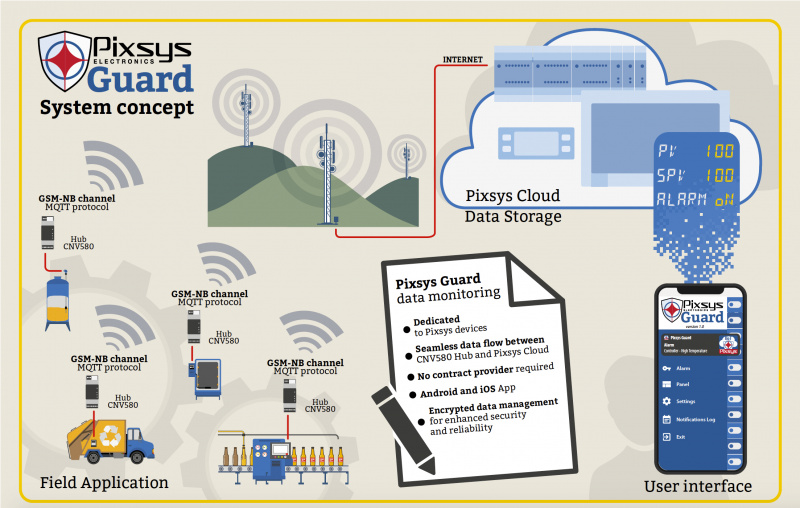

A comprehensive solution built on monitoring, reporting, data storage functionality with integration with the PixsysGuard user environment.

Easily and quickly connect existing Pixsys controllers to cloud storage with the CNV580 Iot module. No additional SIM card or internet connection required; simple, easy and convenient access via Pixsys Guard mobile app, supported by Android and iOS mobile devices.

The application provides remote:

  • indication of current data
  • viewing historical data
  • control and the ability to change settings
  • alarm messages
  • event log

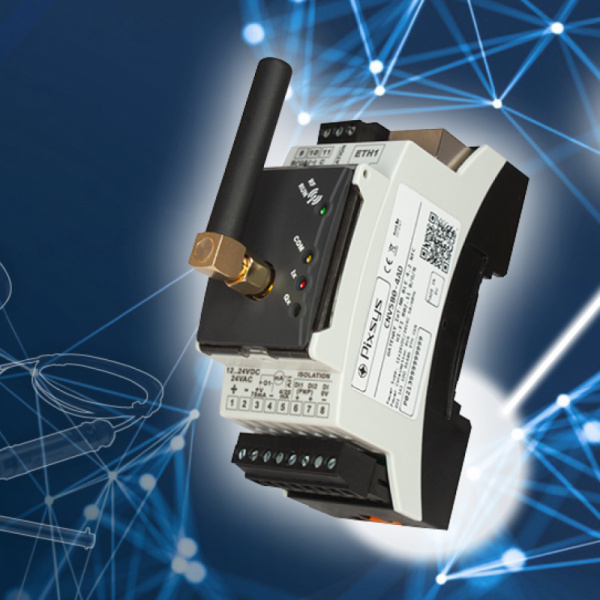

More about the technical features of the CNV 580

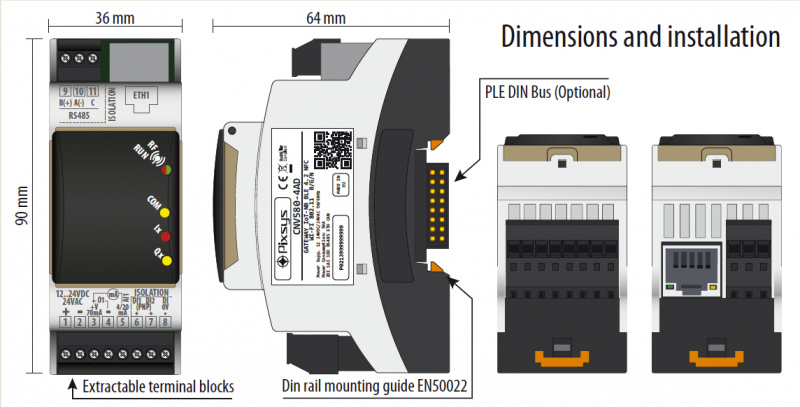

  • Size 35.6 x 89.7 x 63.5 mm (DIN43880, 2 DIN rail modules)
  • Supply voltage 24 VAC 50/60 Hz. 12-24 VDC ± 15%
  • Power consumption 5 W
  • Working environment conditions 0-45 ° C, humidity 35..95 RH%
  • Weight 185g
  • Protection class IP20 (housing and terminals)
  • Parameterization using APP / NFC "MyPixsys" Android / iOS
  • Mobile connection (LTE cat NB1-IoT power consumption)

Input and output signals

  • 1 analog input 4..20 mA (40000 points ± 0.2% F.S.)
  • 2 digital inputs PNP 24 V
  • 1 digital output PNP - 30 mA maxRS485 Modbus RTU - Pixsys device support only
  • Ethernet 10/100 T IEE802.3


For existing Pixsys users, the CNV580 is available for testing now! To agree on a test, feel free to contact the ZTF Lāsma team!

Products
ATR24412ABCT
Code: ATR24412ABCT
In stock: 5+ pcs In stock: 0 (on request)
217.50 EUR (w/o VAT)
ATR144ABCT
Code: ATR144ABCT
In stock: 5+ pcs In stock: 0 (on request)
119.00 EUR (w/o VAT)
DRR24413ABCT
Code: DRR24413ABCT
In stock: 5+ pcs In stock: 0 (on request)
223.00 EUR (w/o VAT)
ATR24423AT
Code: ATR24423AT
In stock: 5 pcs In stock: 0 (on request)
306.50 EUR (w/o VAT)
ATR24423BCT
Code: ATR24423BCT
In stock: 3 pcs In stock: 0 (on request)
306.50 EUR (w/o VAT)
CNV5801AD
Code: CNV5801AD
In stock: 1 pcs In stock: 0 (on request)
375.00 EUR (w/o VAT)
ATR44414ABCT
Code: ATR44414ABCT
In stock: 0 pcs In stock: 0 (on request)
256.50 EUR (w/o VAT)
CNV5802AD
Code: CNV5802AD
In stock: 0 pcs In stock: 0 (on request)
415.00 EUR (w/o VAT)
CNV5803AD
Code: CNV5803AD
In stock: 0 pcs In stock: 0 (on request)
479.00 EUR (w/o VAT)
CNV5804AD
Code: CNV5804AD
In stock: 0 pcs In stock: 0 (on request)
479.00 EUR (w/o VAT)
