Multifunctional PID regulators

December 7, 2018

For a simple heating and cooling process, pressure control or relative humidity regulation, and other other PID processes we suggest to use Pixsys PID regulators. These controlers are very simple, cost effective and with quality for industrial aplications.

Pixsys offers a wide range of products with different sizes, input and output types so you can choose best option for your aplication and still keeping simplicity, well visible indication and intuitive parameter changing only with 3 buttons.

Universal Input - Pt100, Pt1000, J, K, NTC, PTC 0...10V, 4...20mA and other types
2 relay outputs - 6A, 250V, SSR, 4...20mA output
Alarm function, 2 Setpoints
34x74mm, 48x48mm housings, Din mountable
Counter, timer, tachometer

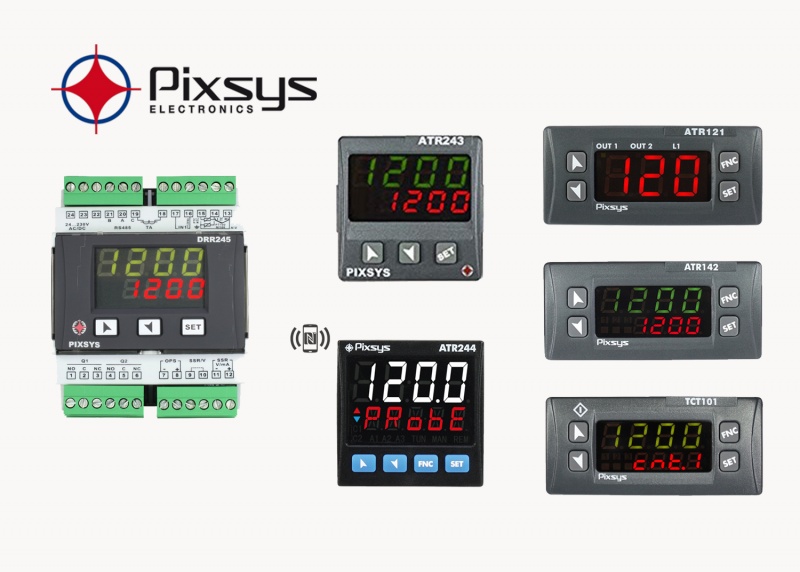

PID regulators:

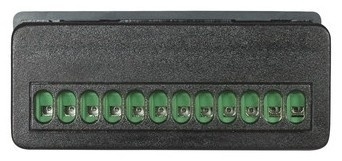

34x74 mm housing:

	Inputs	Outputs	Digits

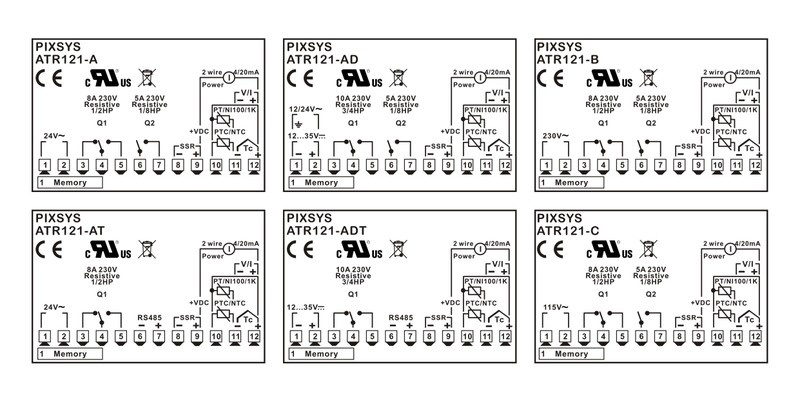

ATR121B	Universal	2 relays 6A, 3A 250V	3

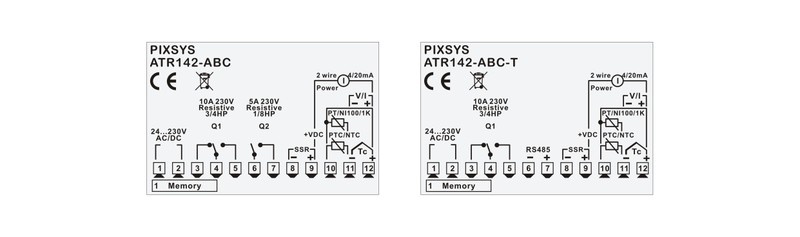

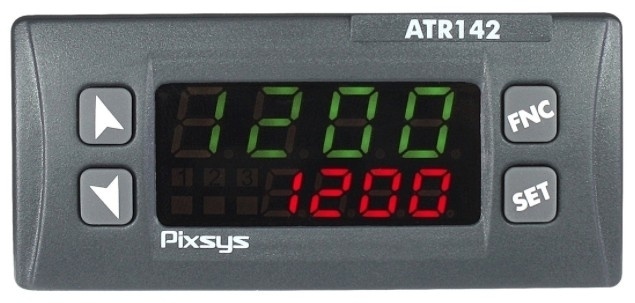

ATR142ABC	Universal	2 relays , SSR,0..10V,4..20mA	4

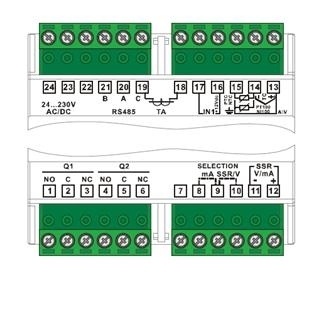

48x48mm housing:

	Inputs	Outputs	Digits
ATR243	Universal	2 relays, SSR,0..10V,4..20mA	4

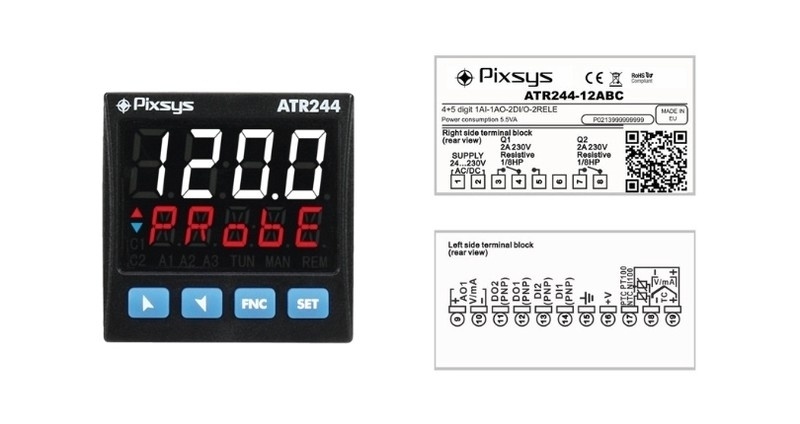

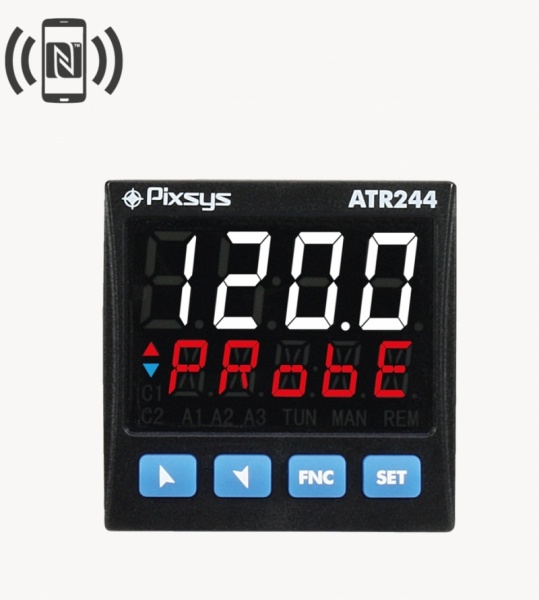

ATR244	Universal	2 relays , SSR,0..10V,4..20mA	4

Din mountable:

	Inputs	Outputs	Digits

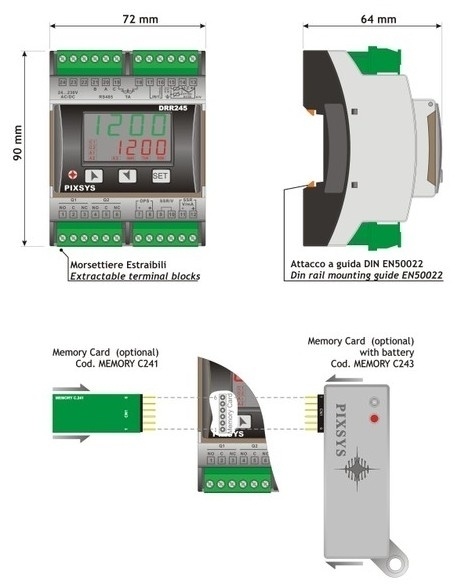

ATR245	Universal	2 relays , SSR,0..10V,4..20mA	4

Counters, timers, tachometers:

34x74 mm housing:

	Funcion	Outputs	Digits
TCT101-1ABC	timer	2 relays 6A, 3A 250V	4
TCT101-2ABC	counter	2 relays 6A, 3A 250V	4
TCT101-3ABC	tachiometer	2 relays 6A, 3A 250V	4
