ITP11 process indicator 4-20 MA (loop-powered)

December 10, 2018
Video Products Images Contacts

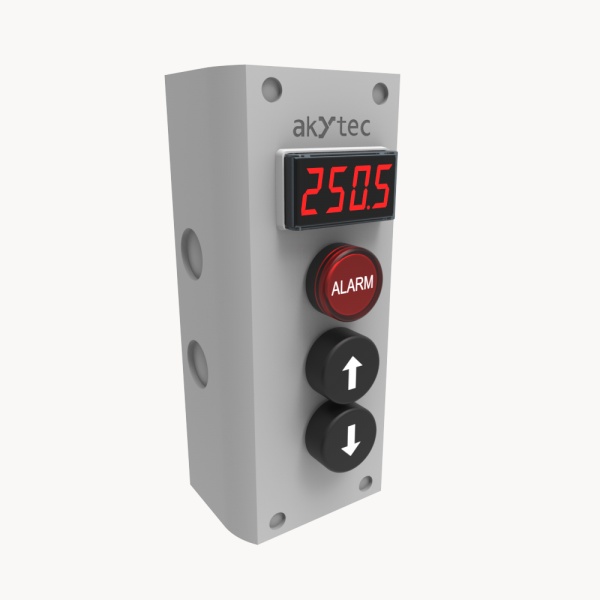

LED color4-20 mA inputloop-poweredeasy mounting in a Ø22.5 mm holequick mountingcompact designthe process display can be installed into a push-button boxaccuracy 0.2%IP65 rated enclosureCharacter height 14 mmAmbient temperature

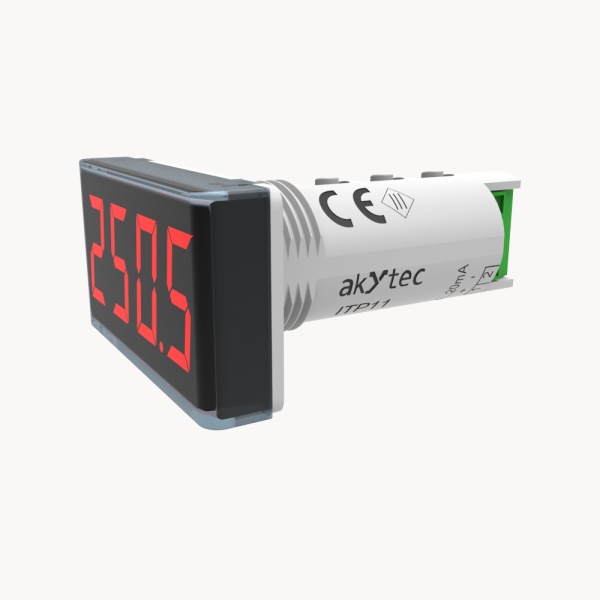

The ITP11 is a universal, microprocessor-controlled display unit for monitoring industrial processes. The measured values are scalable. There is also an optional square root function. The ITP11 is designed to be connected to any transmitter with a 4-20 mA output. It requires no auxiliary power and is supplied directly from the measured current.

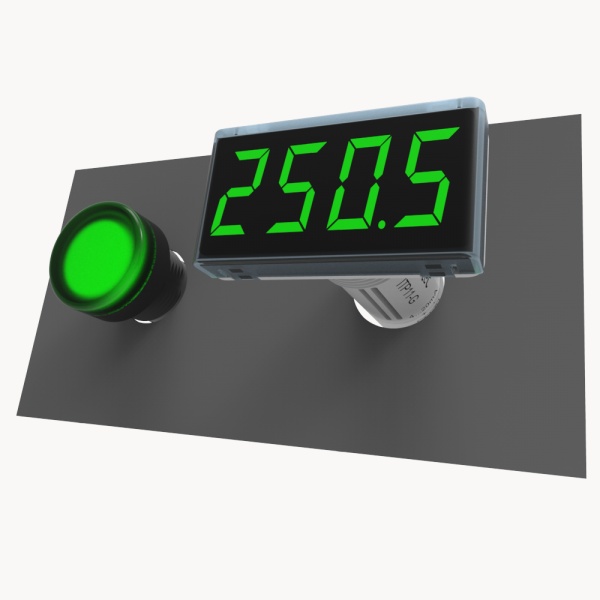

The ITP11 has a compact, standardised design and fits into a standard 22.5 mm borehole for signal lamps. This provides quick and easy installation and many displays can be accommodated in a control cabinet door or on a panel.

Functions and features:

  • Measuring and displaying of the process value, received from a process control device with 4-20 mA output
  • Signal scaling
  • Adjustable decimal point position
  • Display range of -999…+9999
  • Square root function (for special transmitters)
  • Digital filter
  • Alarm function (blinking when exceeding the set points)
  • Error indication when exceeding the measuring limits
  • Access protection

Areas of application:

The 4-20 mA universal display ITP11 is particularly suitable for the fast and easy installation of visual display systems for various processes, such as water supply or thermal processing. The ITP11's compact size ensures that it can be used on-site as an additional display unit for measurement values or as part of a complex visual display system.



Supply current From current loop
Inputs 1
Input signal 4-20 mA (2-wire)
Measuring range 3.8...22.5 mA
Normal operation 3.2...25 mA
Voltage drop, max. 4 V
Accuracy 0.2% + 1 digit
Display LED, 7-segment display
Character height 14 mm
Display colour red or green
Number of digits in display 4
Sampling time 1 s
IP Code front IP65, rear IP20
Dimensions 26 x 48 x 65 mm
Weight approx. 30 g
Protection class III
Ambient temperature -30...+70 °C
Storage temperature -40...+80 °C
Humidity up to 80% (non-condensing)
Products
ITP11
Code: ITP11
In stock: 5+ pcs In stock: 0 (on request)
65.00 EUR (w/o VAT)
ITP11G
Code: ITP11G
In stock: 5+ pcs In stock: 0 (on request)
61.75 EUR (w/o VAT)
65.00 EUR
Z170REG1
Code: Z170REG1
In stock: 5+ pcs In stock: 0 (on request)
162.00 EUR (w/o VAT)
ITP11RW
Code: ITP11RW
In stock: 2 pcs In stock: 0 (on request)
100.00 EUR (w/o VAT)
ITP11GW
Code: ITP11GW
In stock: 0 pcs In stock: 0 (on request)
100.00 EUR (w/o VAT)
