FESTO Pneumatic Cylinders - What to Know

June 19, 2025
Video Products Images Contacts
FESTO Pneumatic Cylinders - What to Know-0

Pneumatic cylinders turn compressed-air energy into linear or rotary motion and are an essential part of modern industrial automation. This article explains how FESTO—one of the market leaders—helps small and medium-sized enterprises (SMEs) boost production efficiency by selecting the right cylinder type and leveraging the latest technologies. The outcome: higher productivity, shorter downtimes, and a longer service life for your equipment.

Table of Contents

What Are Pneumatic Cylinders?

Pneumatic cylinders are mechanical devices that use compressed air to move a piston or vane, creating precise, repeatable and safe motion. They are widely employed across industries—from food packaging to autonomous assembly lines.

  • Push, pull, lift or rotate components with significant force.
  • Low overload risk—pneumatics “slip” under excess load, protecting parts.
  • Simple position sensing with magnetic or IO-Link sensors.

Types of Pneumatic Cylinders

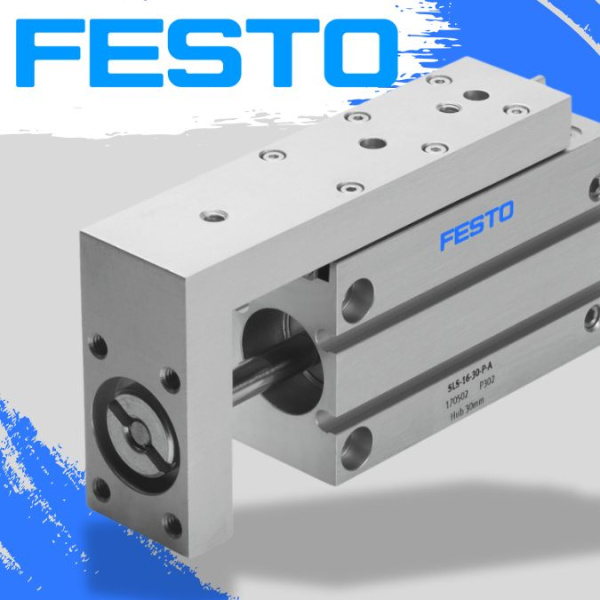

FESTO offers a broad portfolio to match different stroke lengths, loads and installation spaces.

Type Main Features Typical Applications
Standard cylinders (e.g. DSBC) ISO 15552 compliant, self-adjusting PPS end cushioning—minimal tuning Universal conveyor lines, filling machines
Compact cylinders (e.g. ADN-S) Short body, low weight, magnetic positioning Clean-room equipment, electronics test rigs
Rodless cylinders Long strokes without an external piston rod Panel transfer, cutting tables
Rotary actuators Precise angle control, torque up to 50 Nm Part turning, dosing, valve actuation
Guided cylinders Integrated guide rails for side-load capacity Accurate pressing and assembly tasks

Operating Principle

A pneumatic cylinder relies on controlled airflow that acts on the piston to convert pressure into linear or rotary motion.

  1. Compressed air enters the cylinder chamber via control valves.
  2. The pressure differential moves the piston, generating mechanical work.
  3. Exhaust air is vented through cushioning for a smooth stop.
  4. Integrated sensors detect end positions and feed data back to the control system.

Why Choose FESTO?

FESTO combines long-standing engineering know-how with continuous innovation in pneumatic and electric automation.

  • Self-adjusting PPS end cushioning in DSBC cylinders saves setup time and extends seal life.
  • The ultracompact ADN-S series fits where cylinders previously could not.
  • Wide sensor and IO-Link portfolio — easy condition monitoring and diagnostics.
  • A global service network and fast spare-parts delivery reduce downtime risks.

Application Fields

Across industries, pneumatic cylinders make production faster and safer—below are some of the most common use cases.

  • Robot arms and grippers for precise component placement.
  • High-speed conveyor systems in food or packaging plants.
  • Press-fit operations on automotive assembly lines.
  • Laboratory and electronics test stands requiring clean, dry motion.

Selection Fundamentals

Consider both technical and operational aspects to ensure long-term reliability.

  • Stroke and piston diameter — determine available force and space envelope.
  • Load and working direction — pushing, pulling or rotation.
  • Mounting options — ISO-standard or custom fixtures.
  • Operating environment — dust, moisture, food-grade hygiene.
  • Air quality and pressure — good air preparation extends seal life.

Technical Data Checklist

Use this checklist to evaluate every parameter before ordering a cylinder.

Parameter Why It Matters
Stroke Required travel distance and space reservation
Piston diameter Maximum force available at a given pressure
Required force Influences cylinder size and energy use
Mounting method On body, on tie-rod, on end cap, etc.
Operating pressure Energy consumption and seal durability
Motion type Single-acting (spring return) or double-acting
Position sensors Position control, safety and predictive maintenance

Latest Innovations & Maintenance

Beyond mechanical improvements, FESTO develops digital solutions that monitor cylinder health in real time and speed up maintenance decisions. The Festo AX Motion Insights platform merges standardized AI models with Rockwell Logix 5000 controllers, supplying a “health index” for each cylinder.

  • Continuous cycle, pressure and impact analysis—early warnings of leaks or seal wear.
  • IO-Link and Ethernet/IP connectivity integrate data into MES/ERP systems.
  • Energy-consumption monitoring helps achieve sustainability targets.

Summary

Properly selected and maintained FESTO pneumatic cylinders can markedly improve SME production efficiency, cut energy costs and reduce downtime. Follow the checklist above and consider the latest diagnostic technologies to secure long-lasting, reliable system performance. Need tailored advice? Contact an authorized FESTO partner to assess your project and identify the best solution.
