Dynamic Braking Modules from PETER electronic

March 19, 2018

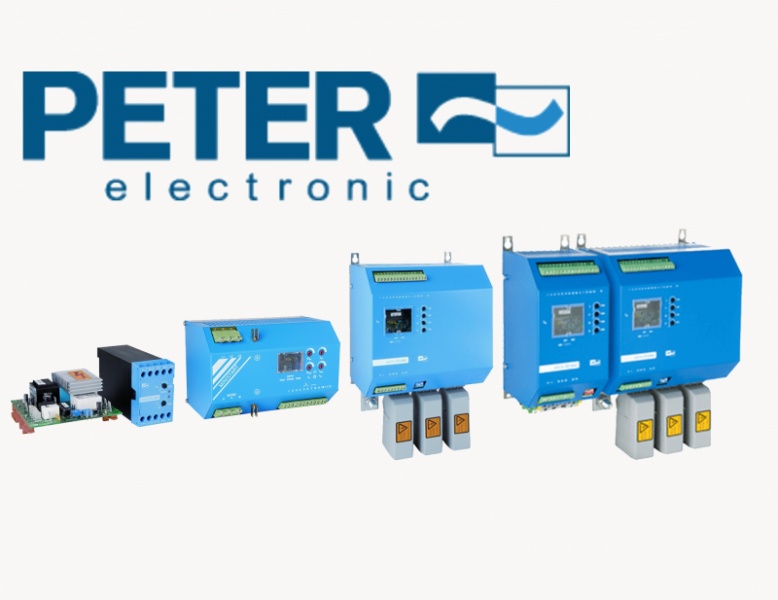

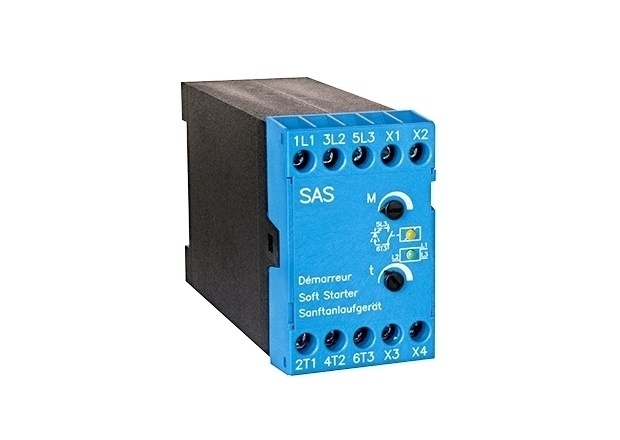

PETER electronic is a company specializing in the design and manufacture of three-phase asynchronous motors and DC motors for control and control of electrical equipment. The company's main product groups are Dynamic Braking Modules, Combined Engine Soft Starting and Braking Modules, Softstarter and other Drive Controls.

Combined engine SOFT START and braking modules -

VBMS 400-2,2 / 20 series - direct engine start, engine start and dynamic brake in one module. Engine control up to 2.2 kW.

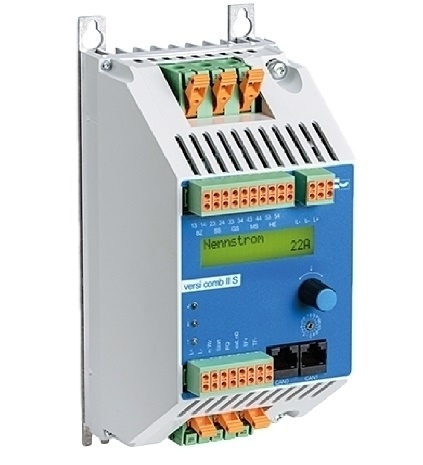

VS II S 480 (VersiComb) series - a combination of soft start and dynamic brake module. Engine control from 5.5kW to 30kW.

Dynamic Braking Modules -

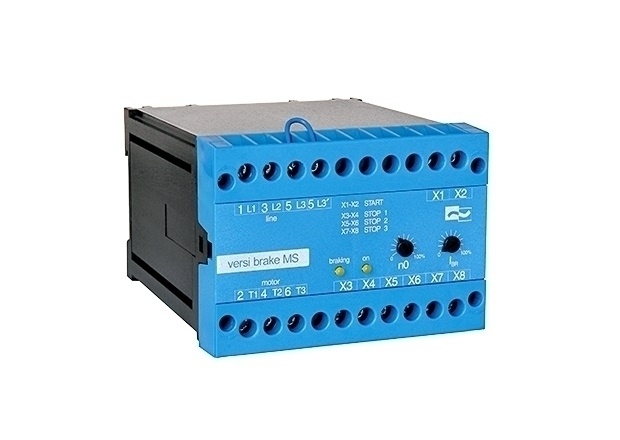

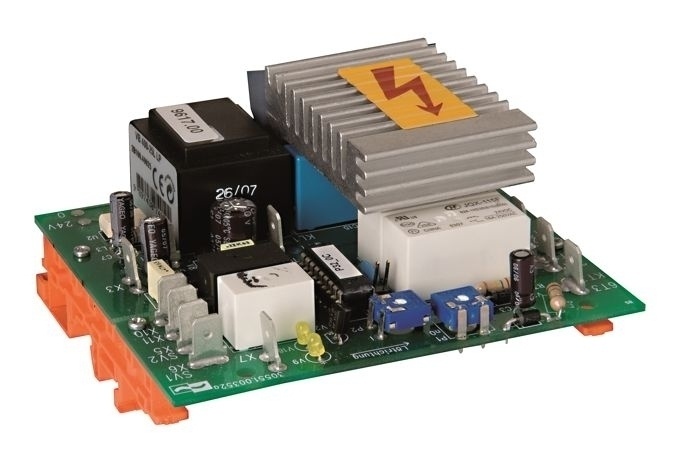

VB 400-6 / 25/30 L / LP / LT series modules - an economical solution for motor braking. Compact size, available modules for pressed plate versions. Suitable for all asynchronous motors and single phase alternating motors. Rated current 6, 25, 30A.

VB 400-25 / 36 series modules - Suitable for all asynchronous motors. Rated current 25, 36A. On request modules can be supplemented with zvaignes / triangles starting control, engine temperature control, full stop signal relay.

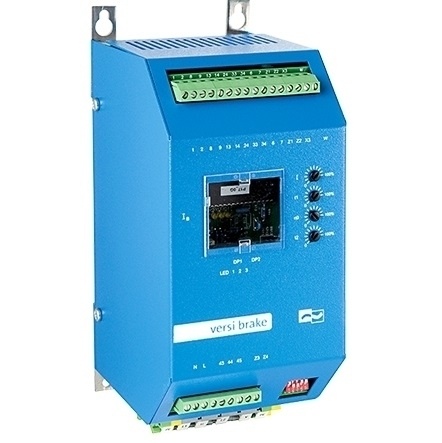

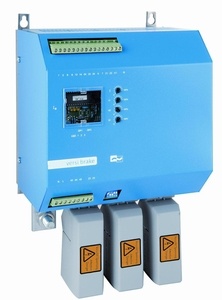

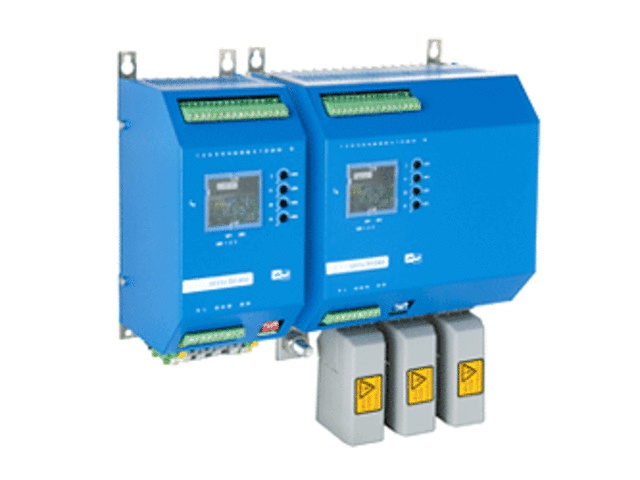

VB 400-40 ... 600 series modules - Suitable for all asynchronous motors. Rated current 40 - 600A. Brake current control 0-100%, braking time from 0.5-320 seconds. On request modules can be supplemented with braking current display, zvigné / triangle start control, engine temperature control, full stop signal relay.

Technical parameters:

Nominal motor power for combined starting / braking modules from 2.2kW to 30kW
Braking modules for braking currents from 2 - 600A

Advantages:

Electronic brakes, no maintenance required, no mechanical wear
Fast stopping - Increase the number of on / off cycles
Simple engine management using just a few control elements
Adjustable braking time and braking torque / current
Easy to install and integrate with existing equipment

Application:

Effective and predictable stopping of rotating parts of machines by shortening braking time or safety reasons.
Suitable for machines with a high inertia force - woodworking and sawing machines, circular saws, grinding machines, centrifuges, vibro-boxes, conveyors, and the like.
