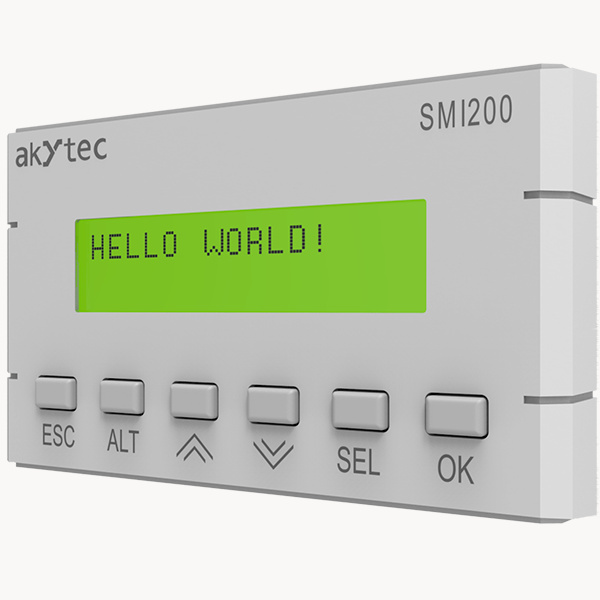

In today's fast-paced industrial world, efficiency and space-saving solutions are key. The SMI200 Programmable Compact Controller stands out as a versatile tool designed for those seeking robust control in a compact form. Whether you're managing complex automation processes or simply need a reliable interface, this controller offers the flexibility and performance that modern industries demand.
Table of contents:

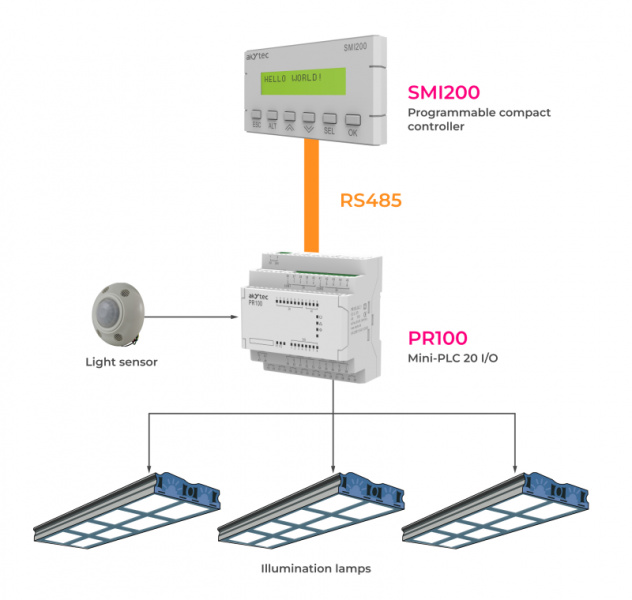

The SMI200 is more than just a controller; it's a multifunctional device that serves both as a mini-PLC and an HMI. Imagine having the power to control lighting, HVAC systems, or even complex machinery, all packed into a device that fits into a standard 22.5 mm borehole. If you’re managing industrial processes or looking to optimize your control systems, the SMI200 is designed with you in mind.
By the end of this article, you'll understand the key benefits of the SMI200, its main specifications, and why it’s an ideal choice for a range of applications.

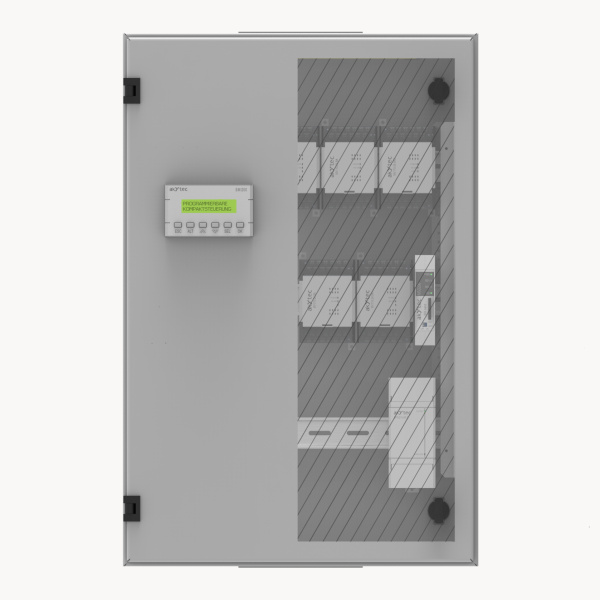

Compact Design: The SMI200’s cylindrical shape allows it to easily fit into a standard 22.5 mm mounting hole, saving valuable space in control cabinets or panels.

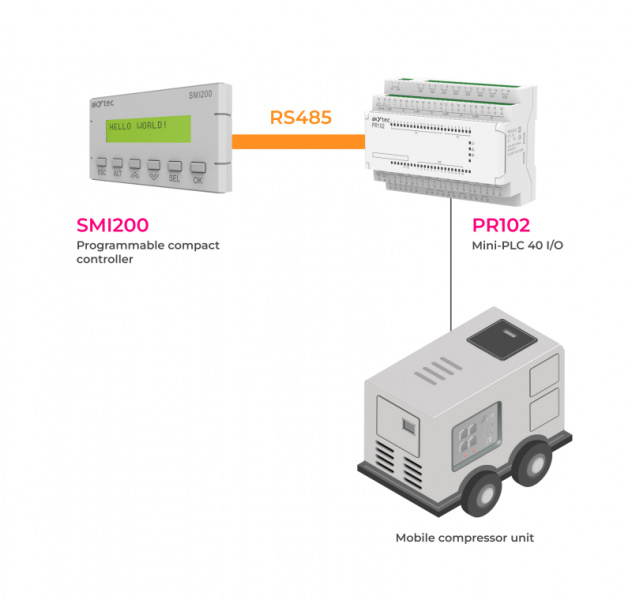

Versatile Functionality: It can function as a standalone mini-PLC or an HMI for the PR100, PR102, and PR103 controllers, making it adaptable to various control needs.

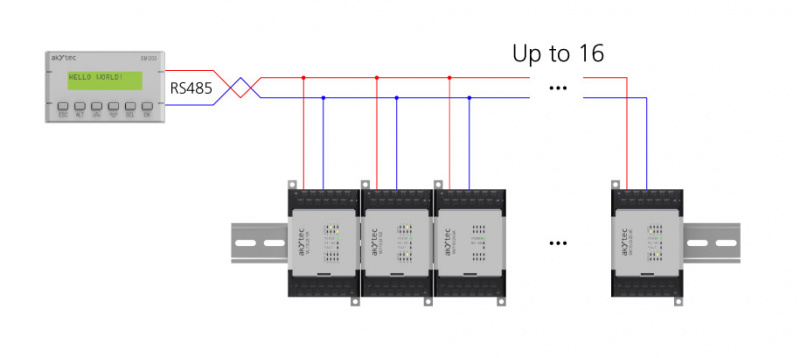

Flexible Connectivity: With an RS485 interface supporting Modbus RTU/ASCII, it can be expanded with up to 16 I/O modules, providing customizable input/output configurations.
User-Friendly Interface: The 2-line, 32-character LCD display, along with 6 function keys, makes it easy to monitor and control processes.
Durable and Reliable: Built to withstand harsh industrial environments with an IP54 front and IP20 rear rating, it operates reliably within a wide temperature range.
| Power Supply: | 24 (9...32) V DC |
| Power Consumption: | Max. 2.5 W |
| Display: | LCD with backlight, 2-line, 2x16 characters |
| Function Keys: | 6 |
| Real-Time Clock: | Yes |

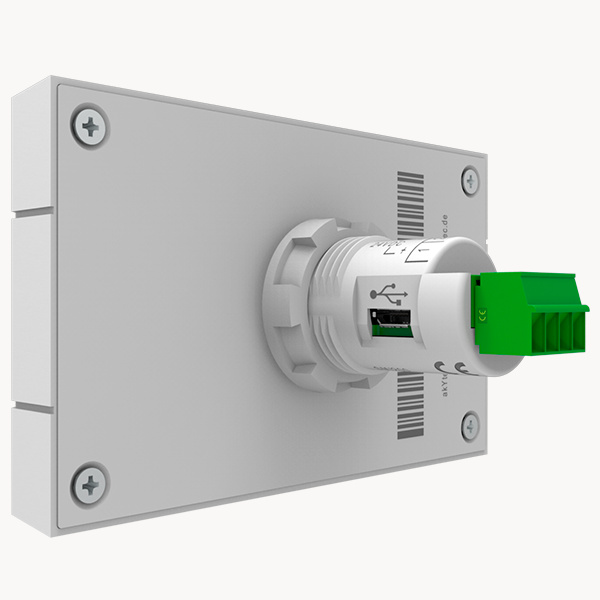

| Mounting: | Ø 22.5 mm borehole |
| Ambient Temperature: | -20...+55 °C |
| IP Protection: | Front IP54, Rear IP20 |

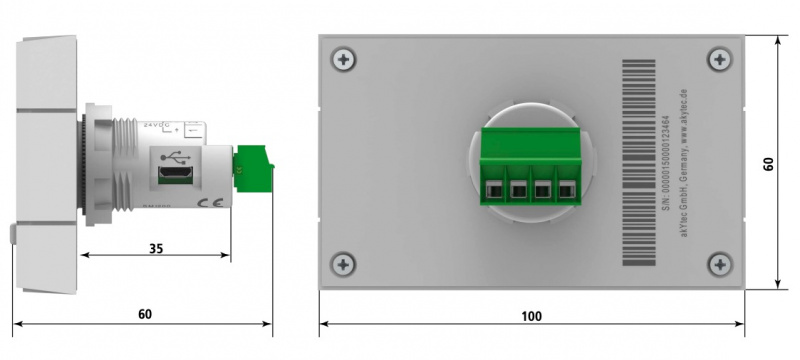

| Dimensions: | 100 x 60 x 60 mm |
| Programming Interface: | Micro-USB |
| Protocols: | Modbus RTU/ASCII |
| Baud Rate: | 9.6...115.2 kbit/s |
The SMI200 is perfect for a variety of applications, including:
 |
 |
The SMI200 Programmable Compact Controller is a small device with big potential. Its ease of installation, combined with powerful functionality, makes it an indispensable tool for industrial automation. Whether you're streamlining existing systems or setting up new control processes, the SMI200 provides the flexibility and reliability you need.
Its ease of installation, combined with powerful functionality
If you’re ready to take your control systems to the next level, consider integrating the SMI200 into your operations.
For more details or to discuss how the SMI200 can fit into your specific application, don’t hesitate to contact an engineer today.
Your path to efficient and space-saving automation starts here!
