MyALARM3 Cloud is the new smart solution for control and monitoring of unattended remote sites. A highly versatile IIoT system for building automation and industrial environments.
Through a powerful mobile app, available in 10 languages and complete with online tutorials/help, you can configure the entire system, receive real-time information, send commands, schedule actions and manage alarms. MyALARM3 Cloud is the suitable solution to manage unattended sites, sites without internet cable or for transport applications (GPS version available).

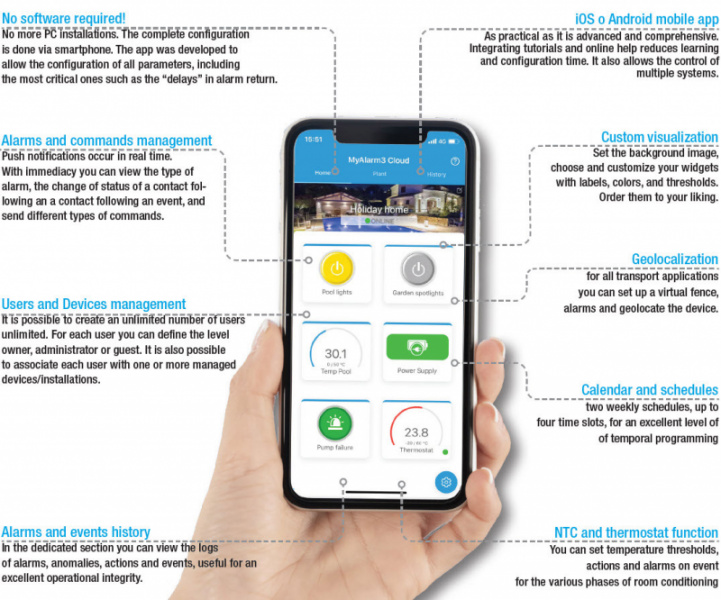

Why choose MyALARM3 Cloud?

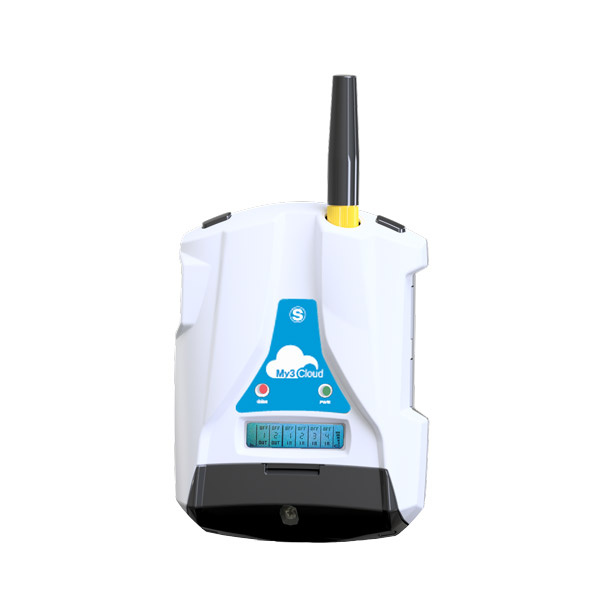

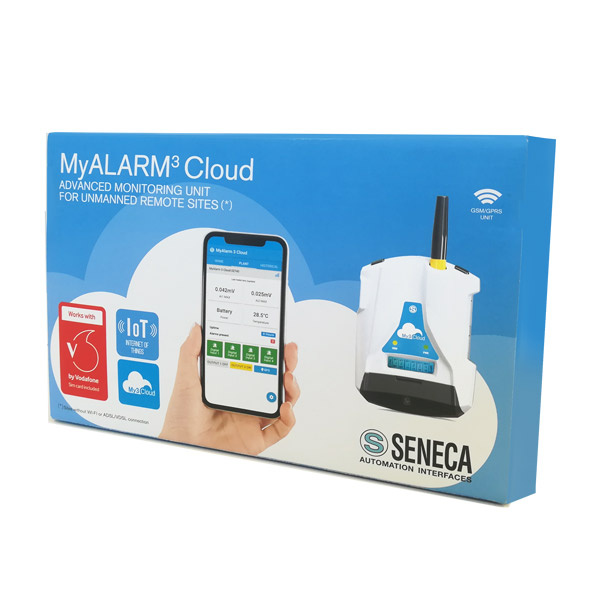

Intelligent control unit

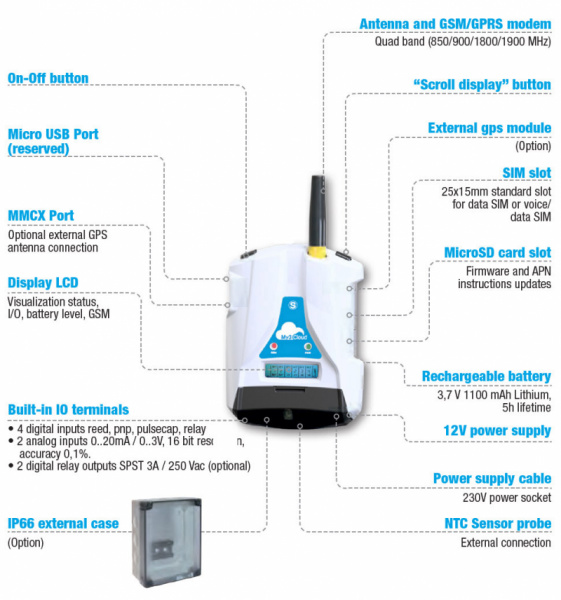

Third generation GSM/GPRS remote control unit integrating 4 digital inputs, 2 analogue inputs, 2 digital outputs, LCD display, NTC temperature sensor, input for external NTC sensor, back-up battery, GPS module (optional).

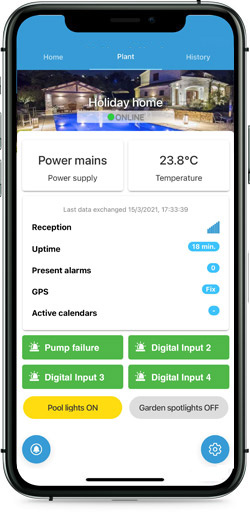

Free iOS / Android mobile app
Free multi-languages (10 languages) mobile app available from Apple or Android stores. This powerful app allows advanced system configuration in a simple and intuitive way. It integrates tutorials, manuals and online help.
Cloud Service
The MyAlarm3 Cloud ecosystem uses a cloud service offered by SENECA. The service is included 12 months from product activation. At the end of which you can extend the duration at a cost of 24 € + VAT per year.

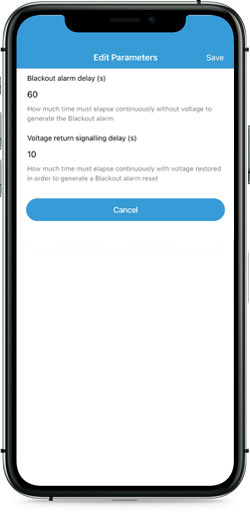

Advanced configuration
MyALARM3 Cloud app offers very high levels of parameterization customization. For example, it allows you to easily set the critical times for the system such as the blackout alarm delay and the delayed power return signal. The app also guides the user through the customization of widgets, image backgrounds and all interface parameters (language, header, widget shape, camera, tab sorting).
Alarms and Commands management
The range of alarms that can be managed in case of blackout, digital contact variations (and related counters), exceeding of analogue thresholds etc. is very wide. These variations correspond to the availability of on/off, timed and impulsive commands, for example for opening/closing motors, pumps, gates, overhead doors, lights, twilight contacts (dawn/dusk), temperature thresholds (HVAC systems).

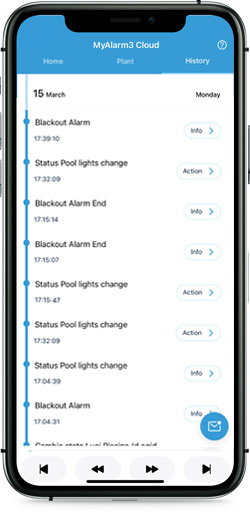

Alarms and events history
The application has a specific section for displaying the alarm and event log (statuses, alerts, errors, warnings) that can be easily filtered and consulted. Reports of offline devices and loading of updates are also provided. The availability of this data provides concrete analysis to monitor the installations and obtain a unified visualization of the operational integrity status.

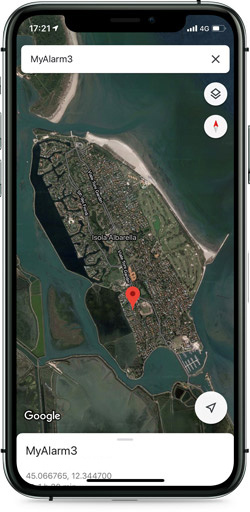

Geolocalization
Using the integrated GPS module (optional), the app makes it possible to receive geolocation notifications and manage alarms, such as exceeding the virtual fence. The control and localization of the system via GPS increases the level of security and expands the range of applications even in mobile conditions.

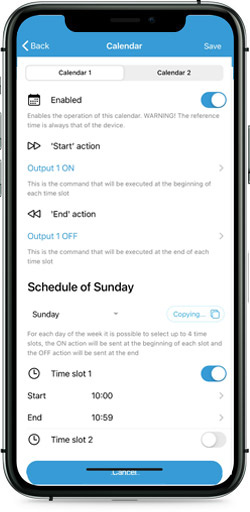

Calendar and schedule
Once the calendar is set and enabled, the app allows you to send commands at the beginning/end of the time slot, such as turning lights on or off at set times, with the availability of 2 weekly calendars that can be programmed up to 4 time slots).

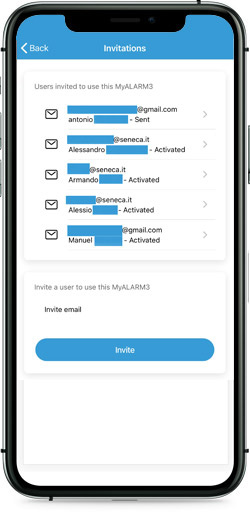

User and device management
In order to obtain the maximum flexibility of plant management, MyAlarm3 Cloud allows to connect more users (unlimited number) to the same plant with a multi-level access system: owner, administrator, user editor with access through a restricted area. The same instance of the app allows access to different plants.

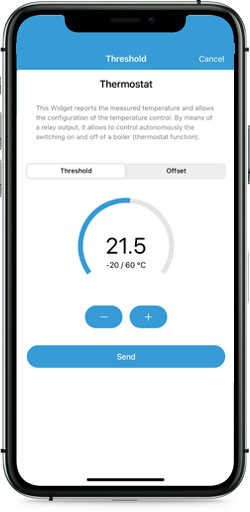

Thermostat function
The app allows you to set, modify and send temperature parameters and the alarm associated with exceeding the threshold value. MyALARM3 Cloud behaves in this way as an electronic thermostat to control the room temperature, during heating or air conditioning.

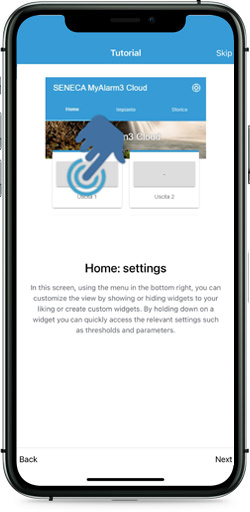

Tutorial e help online
The app provides system configuration instructions in graphical format, tutorials and step-by-step guides on managing, creating and customizing widgets, accessing history and system information. It also provides detailed online manuals that save learning time and reduce the risk of user errors.
| ORDER CODE : | MyAlarm3 Cloud |
| BUILT-IN MODEM: | GSM / GPRS quadband |
| USB INTERFACE: | microUSB |
| EXPANDABLE MEMORY: | Slot Micro SD (up to 32 GB) |
| BUILT-IN MEMORY: | Flash (1 + 8 MB) |
| INTEGRATED TEMPERATURE PROBE: | NTC |
| DIGITAL INPUT: | N°4 channels |
| COUNTERS: | N°4 (@32 bit, max 30 Hz) |
| DIGITAL OUTPUT: | N°2 SPST 3 A relay |
| ANALOG INPUT: | N°2 channels (0..20 mA, 0..30 V), 16 bit resolution |
| SIM CARD: | The sim is mandatory for configuration, consultation and use of the system. Each KIT is equipped with a V-SIM Vodafone to be activated via smartphone; alternatively it is possible to use a SIM of the most famous telephone operators. |
| CONFIGURATION: | iOS / Android mobile app Web browser HTML5 |
| INFORMATION STATUS AND USE: | iOS / Android mobile app Web browser HTML5 (notifications non available) |
| CLOUD SERVICE: | 12 months included in the purchase price and active from the date of activation of the product |
| POWER SUPPLY: | Through USB cable or 230V AC power supply (both included) |
