New Profinet IO module with 16DI and 8 relay DO

November 13, 2020
Products Images Contacts
New Profinet IO module with 16DI and 8 relay DO-0

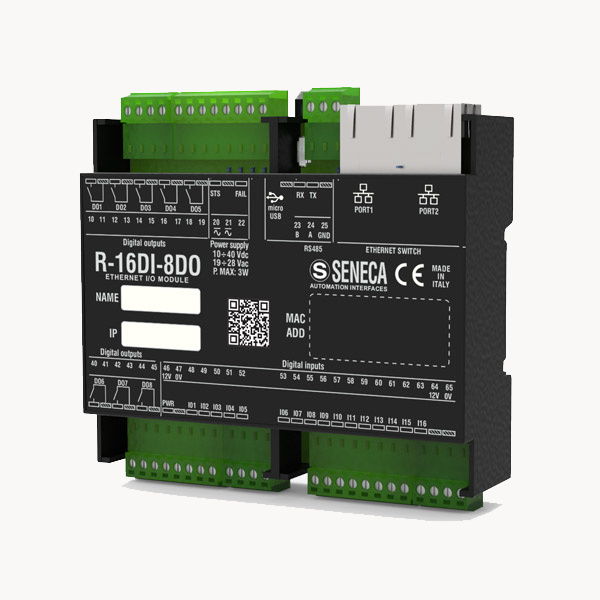

SENECA presents R-16DI-8DO-P a PROFINET decentralized periphery I/O module compatible with TIA Portal and CODESYS programming environments and PROFINET IO Controllers.

 The module is designed for flexible wiring needs, small installation space and high I/O density applications.

  • isolation up to 1.5 kVac,
  • x 16 PNP/NPN digital inputs
  • 8 x 24Vdc digital relay outputs.
  • 10..40 Vdc; 19..28 Vac
  • 106 x 90 x 32 mm
  • -20..+65°C

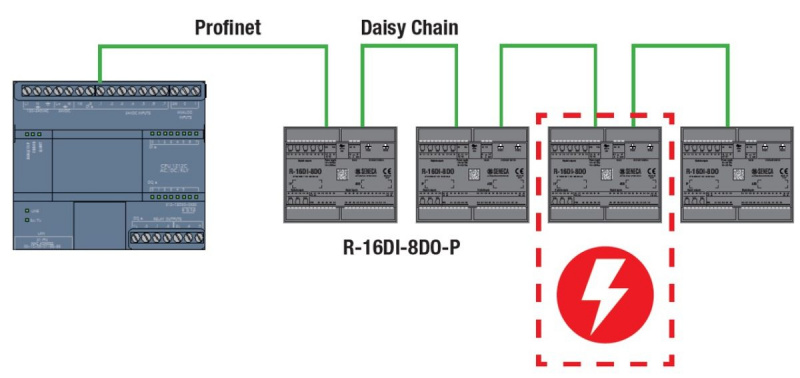

R-16DI-8DO-P supports daisy chained Ethernet connections with fault-bypass function that keeps the Ethernet ports electrical connection active even in case of module failure and avoids downtime or production stops.

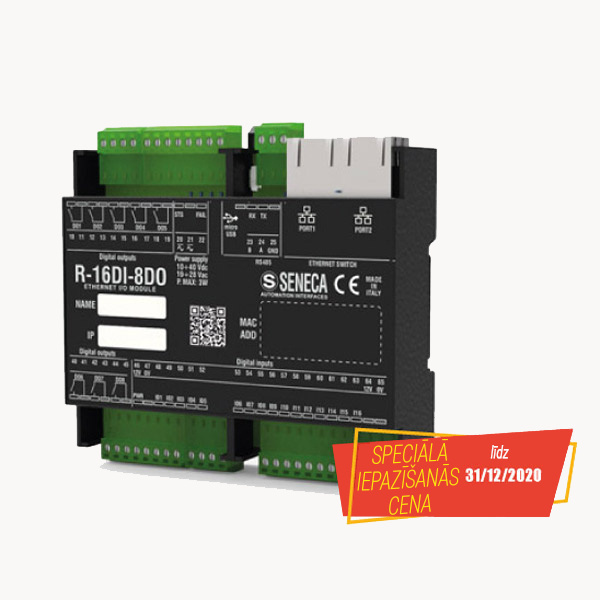

Until 31.12.2020 R-16DI-8DO-P available for SPECIAL INTRODUCTION PRICE: 185.00 EUR / pc + VAT

Request a device test or learn more about R-16DI-8DO-P by calling or writing to our specialist:



Products
R16DI8DOP
Code: R16DI8DOP
In stock: 1 pcs In stock: 0 (on request)
201.50 EUR (w/o VAT)
310.00 EUR
