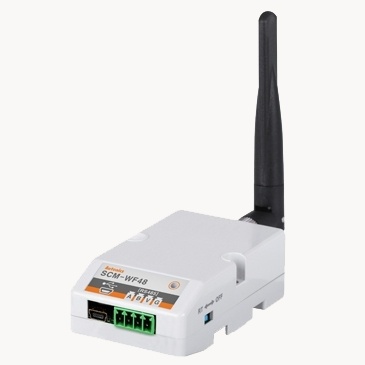

SCM-WF48 Modbus RTU converter to Modbus TCP / IP

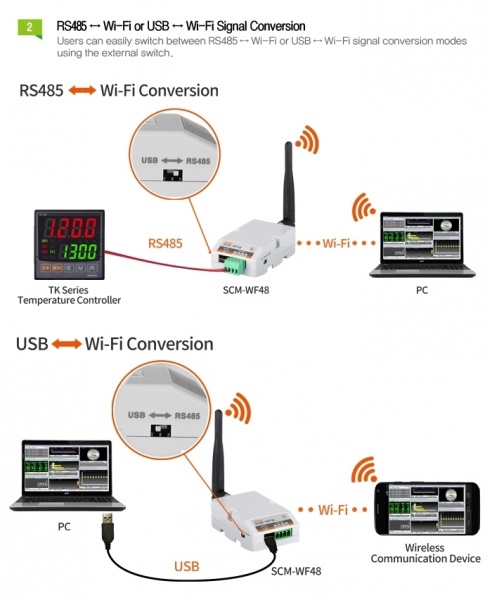

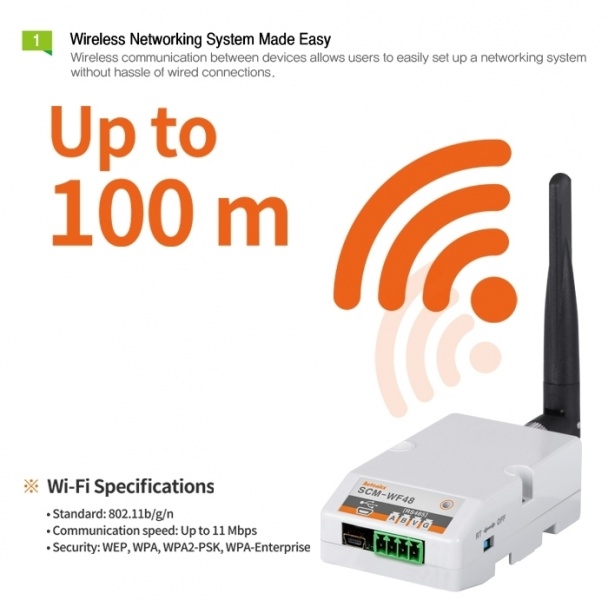

Transforms RS485 / USB signals into Wi-Fi wireless signal up to 100 m range.

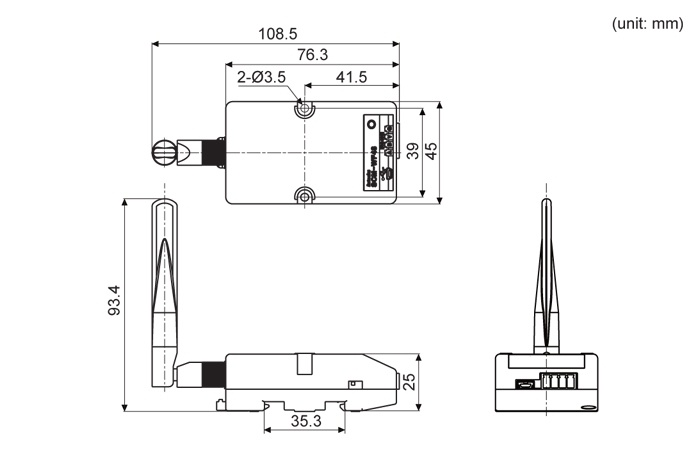

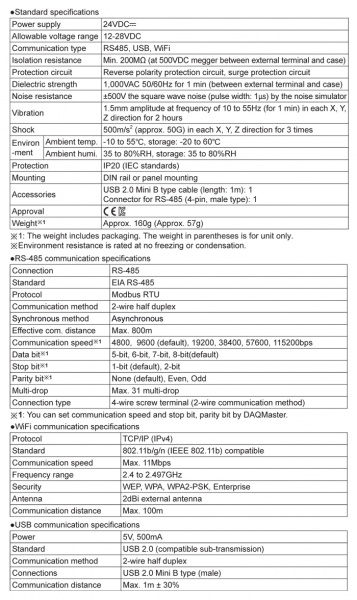

Compact size (W 45 x H 25 x L 76.3 mm)
Built-in circuit surge protection

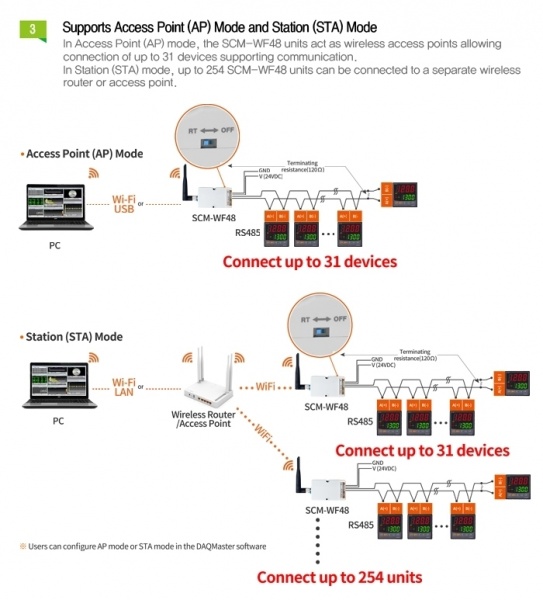

Works as an access point (Access Point -AP) and a base station (Station STA)

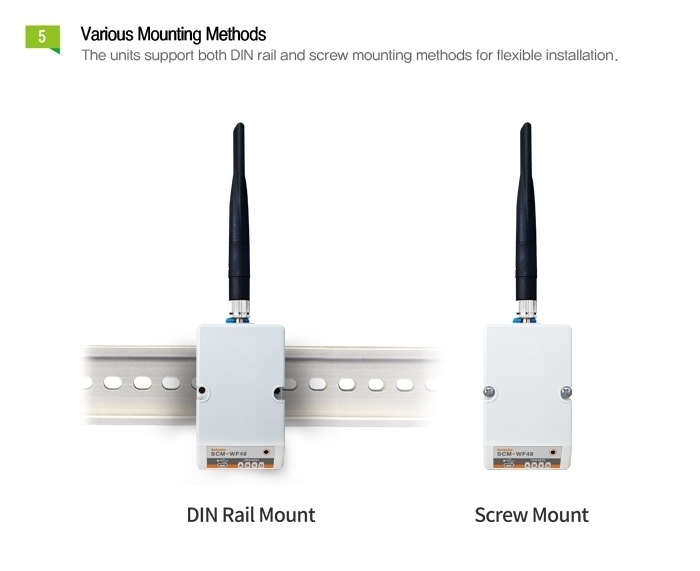

Mounting options (DIN rail or base)

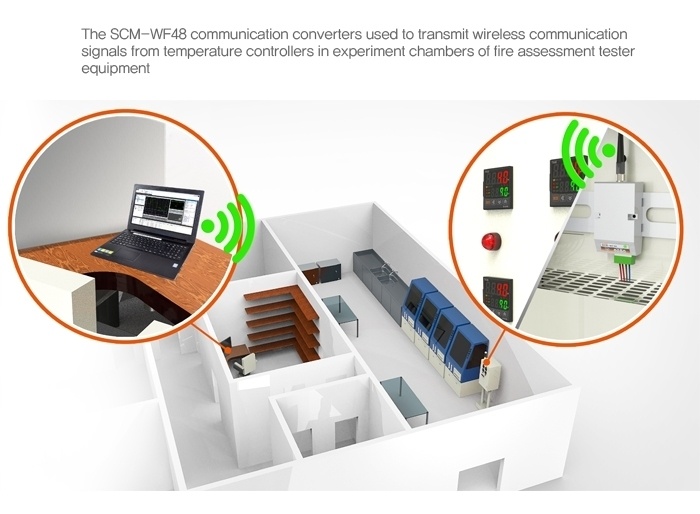

The SCM-WF48 signal transmission and conversion device, which enables the Modbus RTU / RS485 / USB signal to be transmitted using a Wi-Fi wireless network of up to 100m which is nowadays widely available in any environment where production and storage processes need to be provided. The signal transmission is provided by converting Modbus RTU to Modbus TCP or vice versa.
The Autonics DAQMaster software is used to configure the machine.
If you want to give more information about the facility and its work, we will be happy to agree on a meeting time in which we will be able to tell you more about its possibilities and usage. If necessary, we will help to configure the equipment according to your needs.
Test equipment is also available !!!
