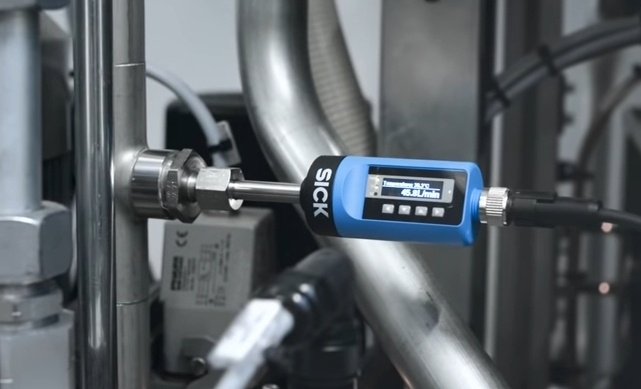

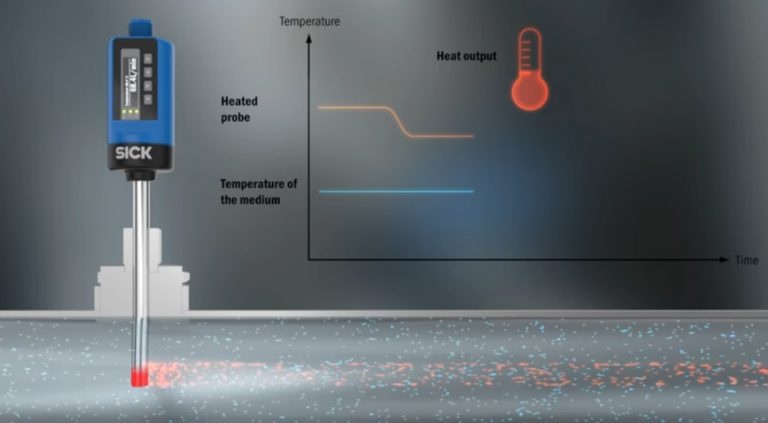

Thermal flow switch for simultaneous flow and temperature detection and control of various water and oil based liquids. A safe and reliable solution for dry run protection in pumps.

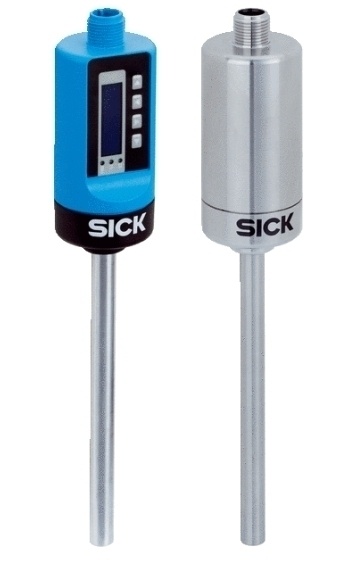

SICK T-Easic® FTS is available in two versions:

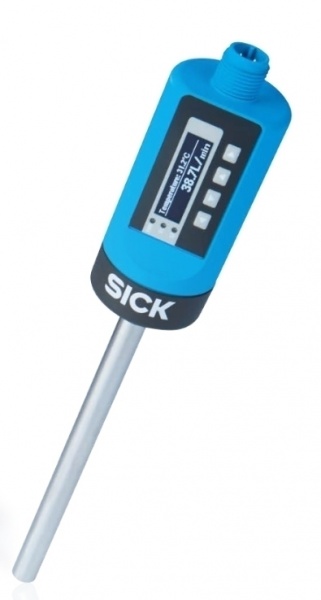

Industrial version with control panel and 180 ° rotating display - extremely durable VISTAL® / polyester housing, protection class IP67
Hygienic version meets all CIP and SIP requirements - Stainless steel 1.4404 / 316L housing, protection class IP67 / IP69
Technical specification:

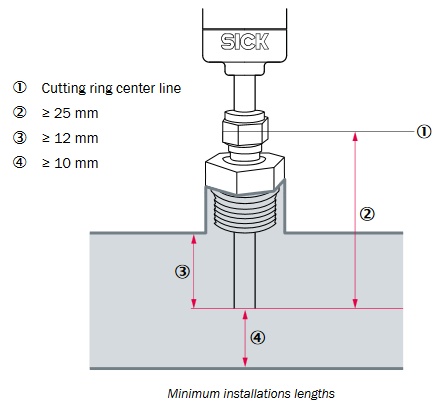

Three probe lengths: 60, 100 and 200 mm, for use in different sized tubes starting from 25 mm in diameter;

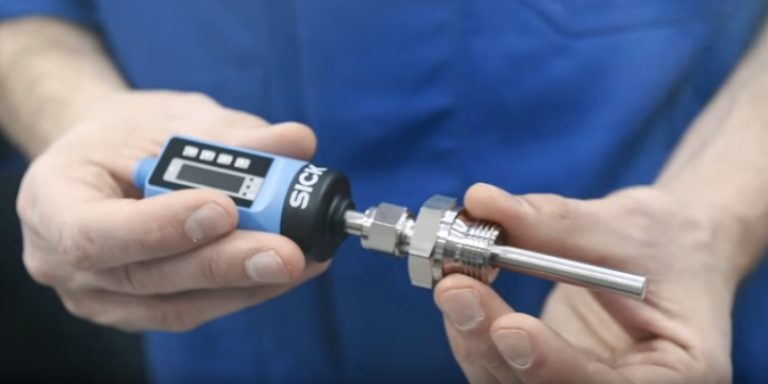

Various threaded connections can be adjusted to mount the sensor: G ½; NPT ½, M18x1.5; process pressure up to 100bar;
Process temperature –40°C ... + 150°C;

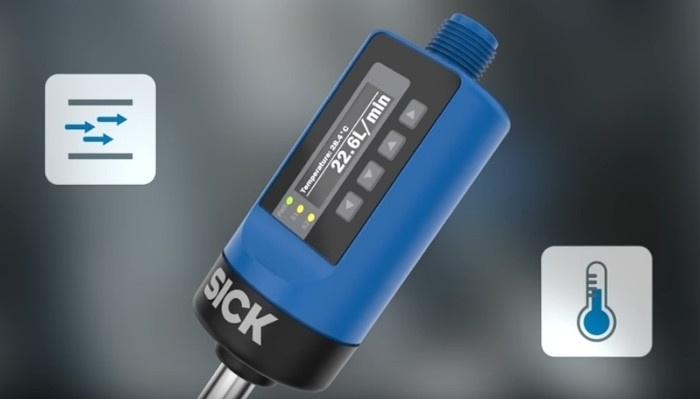

Parameter settings can be done via IO-Link. As an industrial design, it also can be done via OLED display and operating buttons;
2 x digital output flow and temperature measurement for monitoring limit values;
Factory optimized for water and oil; teach-in option of other liquids (range for water: 3..150 cm/s, for oil 3..300 cm/s);
Electrical connection M12, 4-pin connector.
Fields of applications:
Protection and monitoring of pumps in various industries;
Measuring and controlling the flow and temperature of coolants and lubricants;
Cleaning and detergent flow control in food industry CIA cleaning systems;
